SKU: 08B-2-SNX-NO26-RENOLD
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
£15.87
ex VAT£19.04inc. VAT
Regular price
Sale price
£15.87
ex VAT£19.04
inc. VAT
In stock
Price Break
10+
£14.12
19+
£13.33
29+
£13.17
39+
£13.01
49+
£12.85
74+
£12.70
99+
£11.90
199+
£11.74
249+
£11.59
499+
£11.43
999+
£11.11
Couldn't load pickup availability
Description
Description

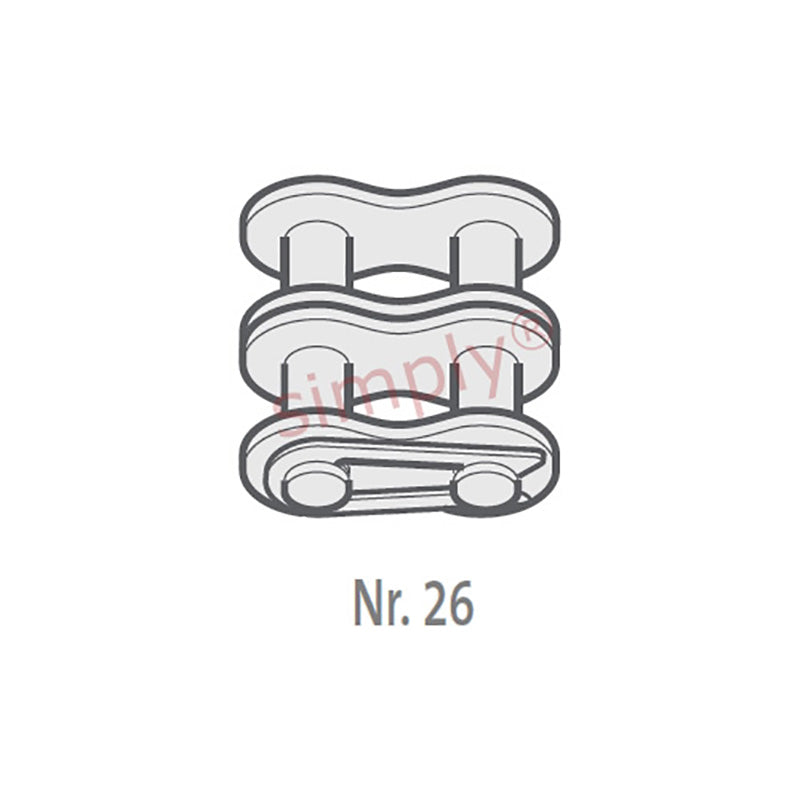

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 30.4mm |
| Connecting Link Extension max (J) | 2mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
