SKU: 06B-3-SD-NO26-RENOLD

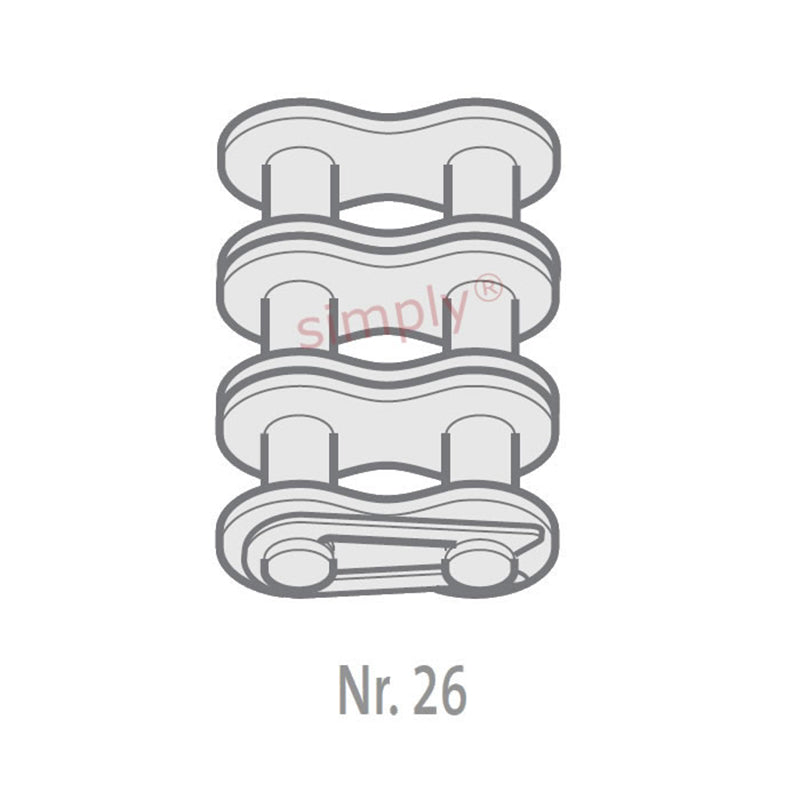

Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
£6.10
ex VAT£7.32inc. VAT
Regular price
Sale price
£6.10
ex VAT£7.32
inc. VAT
In stock
Price Break
10+
£5.43
19+
£5.12
29+
£5.06
39+
£5.00
49+
£4.94
74+
£4.88
99+
£4.58
199+
£4.51
249+
£4.45
499+
£4.39
999+
£4.27
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 35.6mm |
| Connecting Link Extension max (J) | 3mm |
| ISO606 Tensile Strength min | 26250 N |
| Weight | 0.003kg/m |
