SKU: 05B-2-NO12-MB
Major Brand 05B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 8mm Pitch
Major Brand 05B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 8mm Pitch
Regular price
£5.87
ex VAT£7.04inc. VAT
Regular price
Sale price
£5.87
ex VAT£7.04
inc. VAT
Equivalent to: 05B-2-OL
In stock
Price Break
2+
£5.22
5+
£4.93
10+
£4.87
29+
£4.81
49+
£4.75
75+
£4.69
100+
£4.40
200+
£4.34
250+
£4.28
500+
£4.23
1000+
£4.11
Description
Description

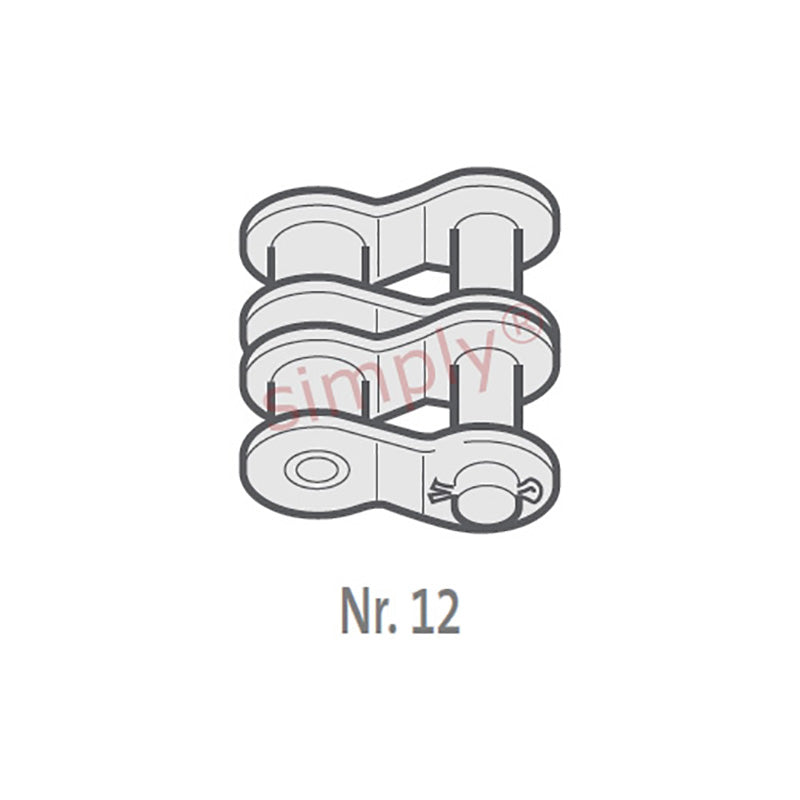

Branded OL / No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 05B-2-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 8mm
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 8mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.76mm |
| Plate Width Outer max (F) | 0.76mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H2) | 14.3mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 5.64mm |
| ISO606 Tensile Strength min | 7800 N |
| Weight | 0.36kg/m |
