SKU: 05B-1-SD-NO26-RENOLD

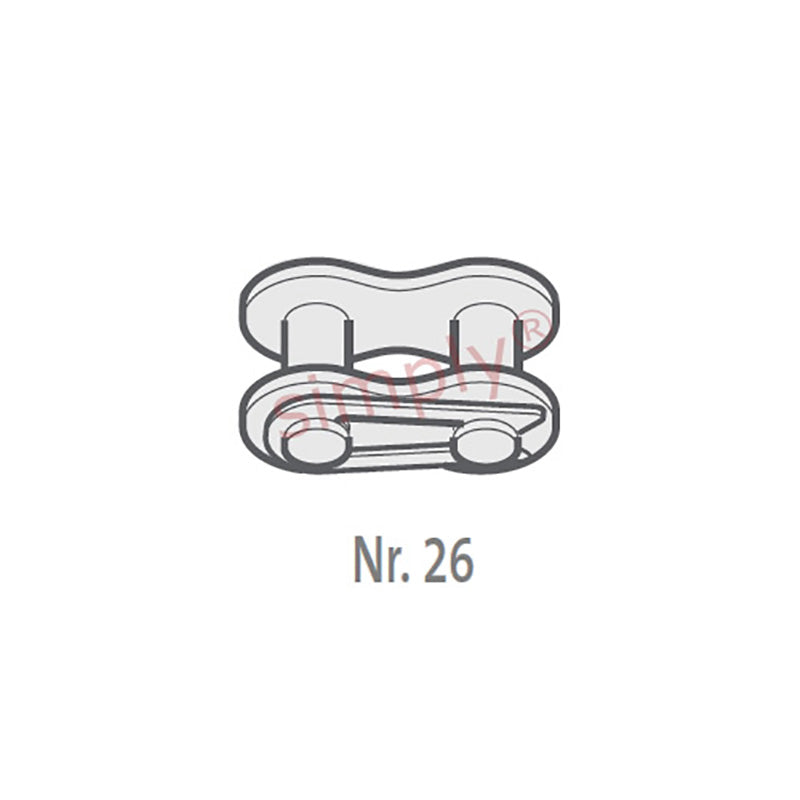

Renold SD 05B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 8mm Pitch
Renold SD 05B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 8mm Pitch
Regular price
£4.03
ex VAT£4.84inc. VAT
Regular price
Sale price
£4.03
ex VAT£4.84
inc. VAT
In stock
Price Break
10+
£3.59
19+
£3.39
29+
£3.34
39+
£3.30
49+
£3.26
74+
£3.22
99+
£3.02
199+
£2.98
249+
£2.94
499+
£2.90
999+
£2.82
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 8mm
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 8mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.75mm |
| Plate Width Outer max (F) | 0.75mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H1) | 8mm |
| Connecting Link Extension max (J) | 0.9mm |
| ISO606 Tensile Strength min | 4400 N |
| Weight | 0.13kg/m |
