SKU: YAR210-115-2FW/VA228-SKF

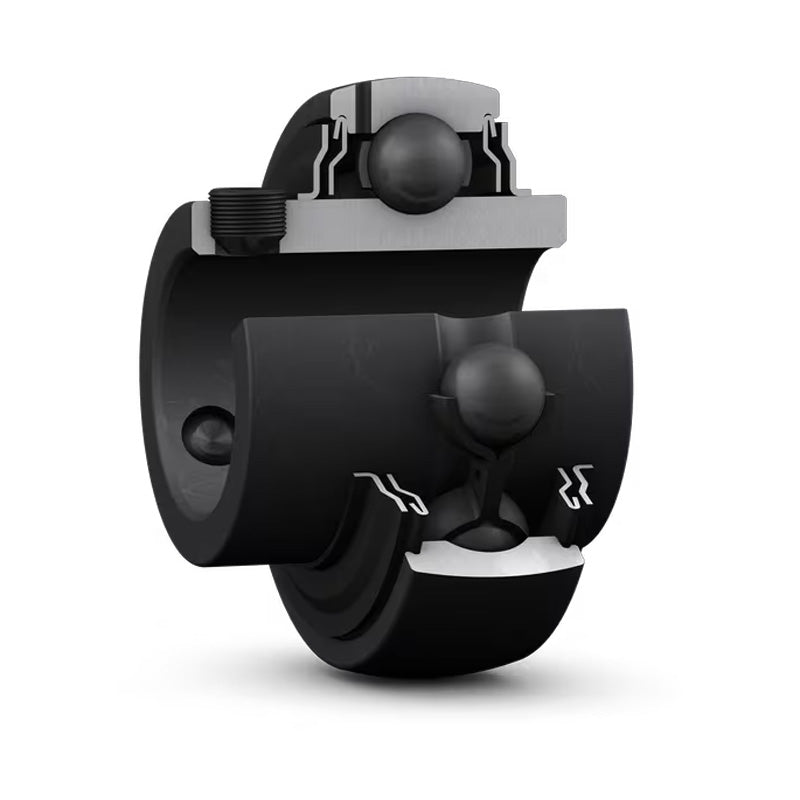

SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft

Name: SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft
Brand: SKF
SKU: YAR210-115-2FW/VA228-SKF
Price: 293.99 GBP
Availability: InStock

£293.99 ex VAT£352.79inc. VAT

£293.99 ex VAT£352.79 inc. VAT

Sale Sold out

In stock

Price Break

10+ £261.65

19+ £246.95

29+ £244.01

39+ £241.07

49+ £238.13

74+ £235.19

99+ £220.49

199+ £217.55

249+ £214.61

499+ £211.67

999+ £205.79

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 49.21mm = 1.937 (1-15/16) inch
Temperature Range:: High Temp

Technical

d	1-15/16 inch
D	90mm
B	51.6mm
C	22mm
d1	62.5mm
s1	32.6mm
r1r2 min	1mm
Dynamic load C	35.1 kN
Static load Co	23.2 kN
Weight	0.78 kg
