SKU: YAR209-111-2FW/VA228-SKF

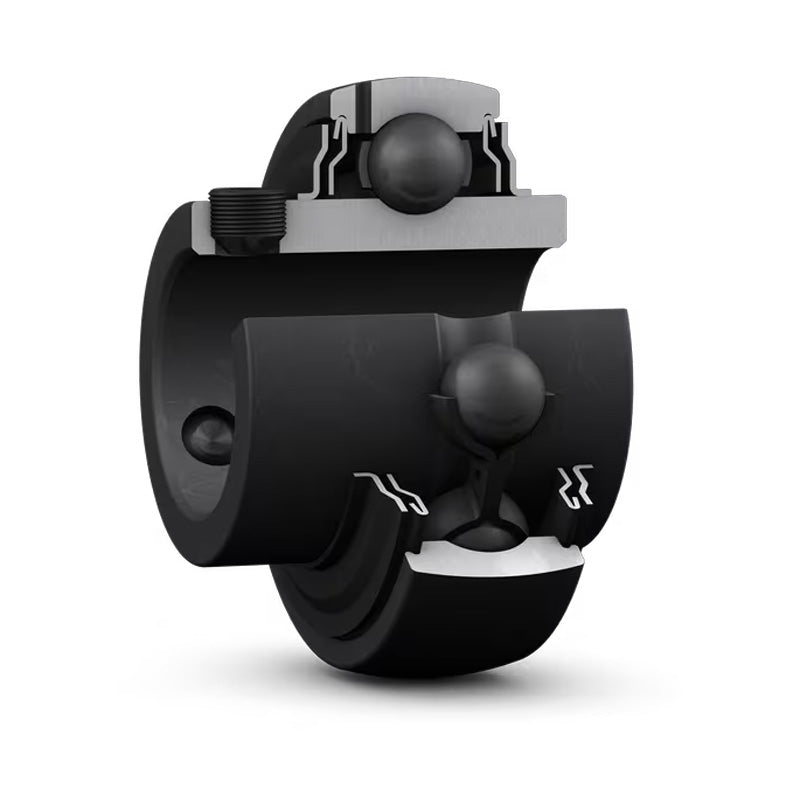

SKF YAR2091112FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-11/16 inch shaft

Name: SKF YAR2091112FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-11/16 inch shaft
Brand: SKF
SKU: YAR209-111-2FW/VA228-SKF
Price: 209.79 GBP
Availability: InStock

£209.79 ex VAT£251.75inc. VAT

£209.79 ex VAT£251.75 inc. VAT

Sale Sold out

In stock

Price Break

10+ £186.72

19+ £176.23

29+ £174.13

39+ £172.03

49+ £169.93

74+ £167.84

99+ £157.35

199+ £155.25

249+ £153.15

499+ £151.05

999+ £146.86

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 42.86mm = 1.687 (1-11/16) inch
Temperature Range:: High Temp

Technical

d	1-11/16 inch
D	85mm
B	49.2mm
C	22mm
d1	56.8mm
s1	30.2mm
r1r2 min	1mm
Dynamic load C	33.2 kN
Static load Co	21.6 kN
Weight	0.75 kg
