SKU: WKSS.3/16X5/8IN

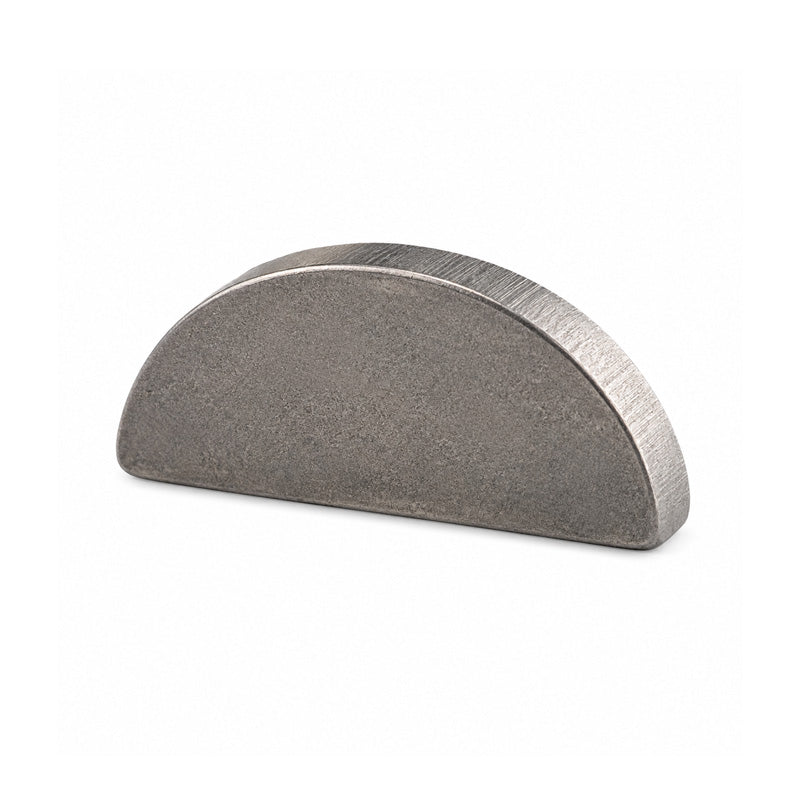

Imperial Stainless Steel A4-316 Woodruff Key 3/16x5/8x1/16 inch
Imperial Stainless Steel A4-316 Woodruff Key 3/16x5/8x1/16 inch
Regular price
£4.54
ex VAT£5.45inc. VAT
Regular price
Sale price
£4.54
ex VAT£5.45
inc. VAT
In stock
Price Break
5+
£3.18
10+
£2.72
20+
£2.50
50+
£2.27
100+
£1.82
500+
£1.59
1000+
£1.36
Description
Description
Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 4.76mm = 0.187 (3/16) inch
- Height:
- Approx 0.2475 inch
- Length:
- Approx 0.607 inch
- Material:
- Stainless Steel
Technical
Technical
| Nominal Diameter A | 5/8 inch |
|---|---|
| Actual Length L (min) | 0.602 inch |
| Actual Length L (max) | 0.612 inch |
| Width C | 3/16 inch |
| Height B (min) | 0.245 inch |
| Height B (max) | 0.25 inch |
| Distance Below Center | 1/16 inch |
| Material | Stainless Steel A4-316 / A4-316 |
| Weight per key (Approx) | 0.001 kg |
