SKU: UC.215-48.TS.CHAL

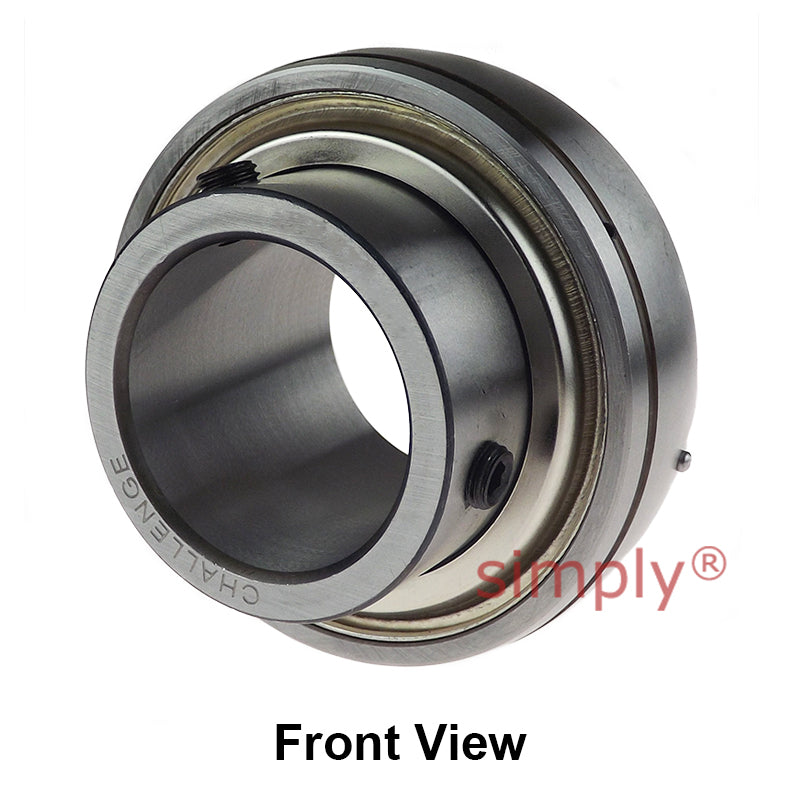

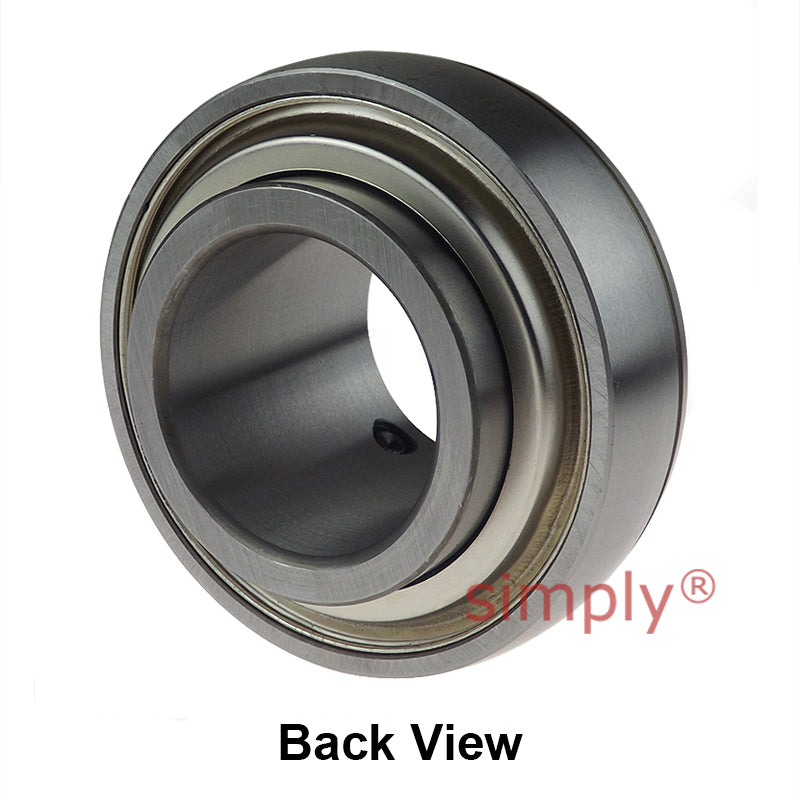

Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
£160.67
ex VAT£192.80inc. VAT
Regular price
Sale price
£160.67
ex VAT£192.80
inc. VAT
Equivalent to: UC.215-48
In stock
Price Break
3+
£143.00
5+
£134.97
9+
£133.36
19+
£131.75
49+
£130.15
74+
£128.54
99+
£120.51
199+
£118.90
249+
£117.29
499+
£115.68
999+
£112.47
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.215-48
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 130mm |
| Overall Width Bi | 77.8mm |
| Inner Race Width Be | 32mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 44.5mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
