SKU: SF1.1/4ECR-RHP

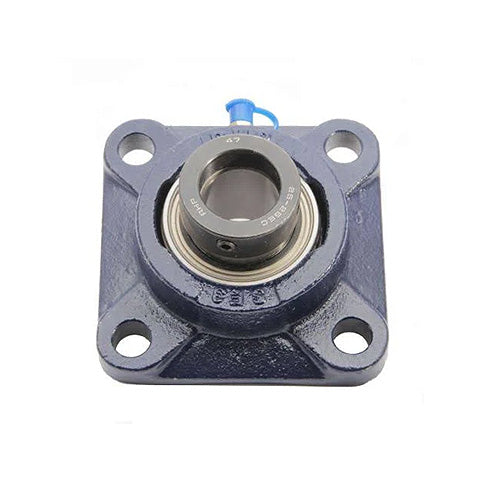

RHP SF1-1/4ECR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Eccentric Collar Flat Back Insert
RHP SF1-1/4ECR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Eccentric Collar Flat Back Insert
Regular price
£50.39
ex VAT£60.47inc. VAT
Regular price
Sale price
£50.39
ex VAT£60.47
inc. VAT
In stock
Price Break
10+
£44.85
20+
£42.33
30+
£41.83
40+
£41.32
50+
£40.82
75+
£40.31
100+
£37.79
200+
£37.29
250+
£36.79
500+
£36.28
1000+
£35.27
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 82.5mm = 3.248 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.252 inch |
| H | 3.252 inch |
| J | 3.248 inch |
| G | 0.4375 inch |
| A | 1.173 |
| A2 | 1.837 inch |
| A4 | 0.5 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static Load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-1/4ECG+insonly">1230-1-1/4ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
