SKU: RCSMB17/65-FA106-INA
INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
Regular price
£28.88
ex VAT£34.66inc. VAT
Regular price
Sale price
£28.88
ex VAT£34.66
inc. VAT
In stock
Price Break
3+
£25.70
5+
£24.26
10+
£23.97
15+
£23.68
20+
£23.39
30+
£23.10
40+
£21.66
50+
£21.37
60+
£21.08
75+
£20.79
100+
£20.22
Description
Description
|

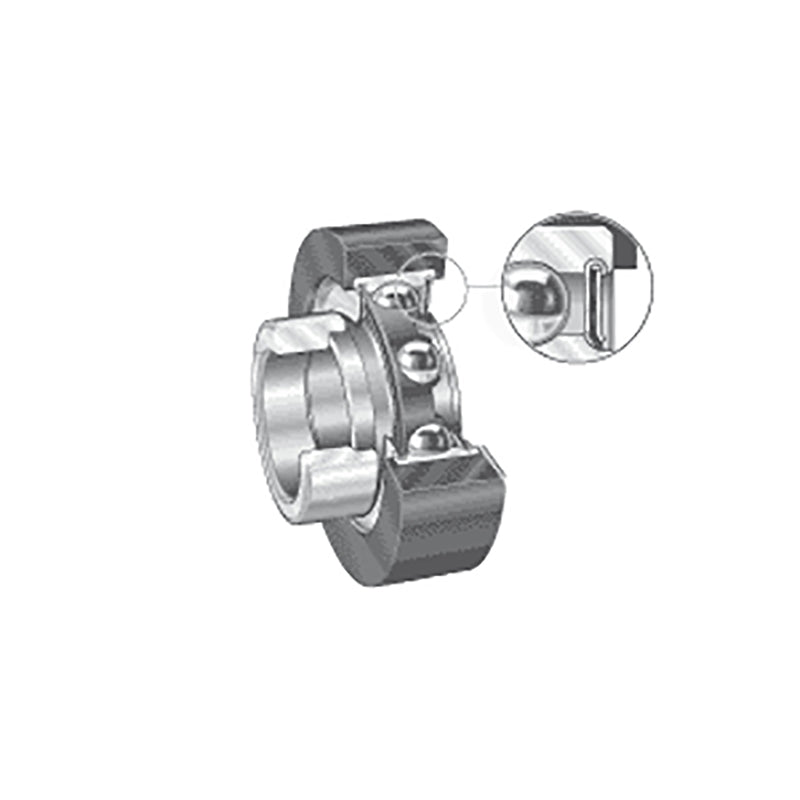

INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 65.1mm
- Width:
- 28.6mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 65.1mm |
| B1 | 28.6mm |
| C | 25.4mm |
| D2 | 35mm |
| d3 max | 28mm |
| P | 12.7mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 900 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of bearing | 331062 |
| Weight | 0.18 kg |
