SKU: RABRB15/47-FA106-INA

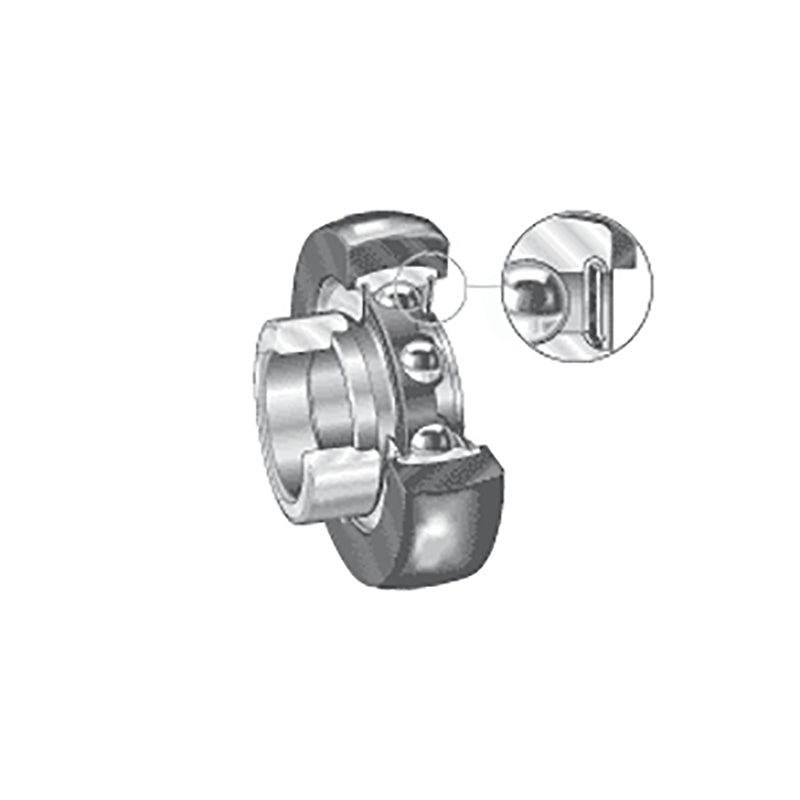

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
Regular price
£27.93
ex VAT£33.52inc. VAT
Regular price
Sale price
£27.93
ex VAT£33.52
inc. VAT
In stock
Price Break
3+
£24.86
5+
£23.46
10+
£23.18
15+
£22.90
20+
£22.62
30+
£22.34
40+
£20.95
50+
£20.67
60+
£20.39
75+
£20.11
100+
£19.55
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47.3mm
- Width:
- 31.1mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 47.3mm |
| B2 | 31.1mm |
| B1 | 28.6mm |
| C | 18mm |
| D2 | 33.5mm |
| d3 max | 28mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 840 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of rubber interliner | RABR39/46 |
| Designation of bearing | RAE15-NPP-B-FA106 |
| Weight | 0.15 kg |
