SKU: PSM405050A51-SKF

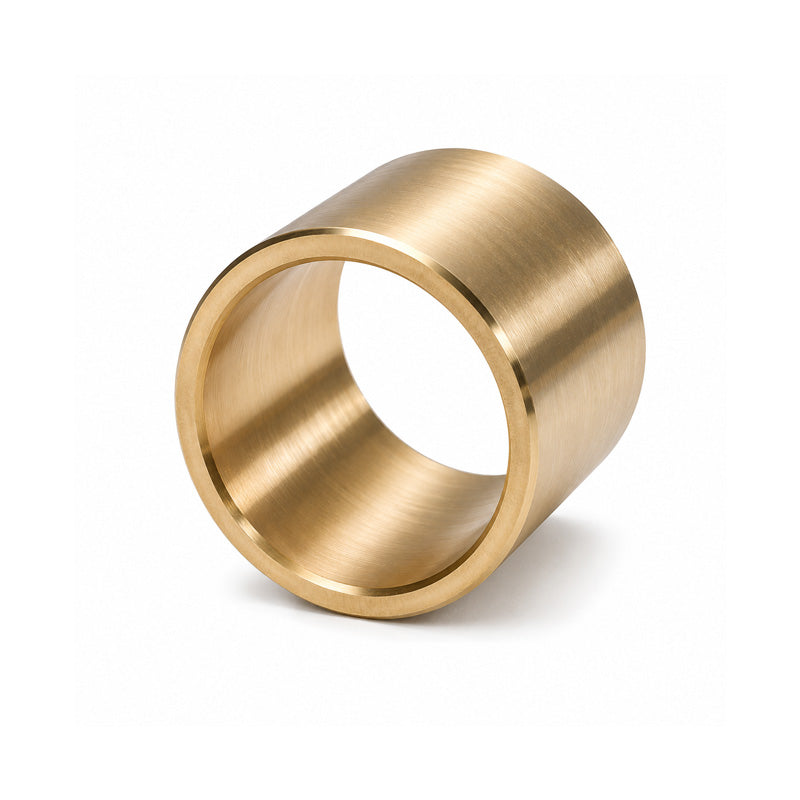

SKF PSM405050A51 Imperial Plain Sintered Bronze Bush 1.575x1.969x1.969 inch
SKF PSM405050A51 Imperial Plain Sintered Bronze Bush 1.575x1.969x1.969 inch
Regular price
£40.58
ex VAT£48.70inc. VAT
Regular price
Sale price
£40.58
ex VAT£48.70
inc. VAT
In stock
Price Break
9+
£36.11
19+
£34.08
29+
£33.68
39+
£33.27
49+
£32.87
69+
£32.46
99+
£30.43
199+
£30.03
249+
£29.62
499+
£29.21
999+
£28.40
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm = 1.575 inch
- Outside Diameter:
- 50mm = 1.969 inch
- Length:
- 50mm = 1.969 inch
Technical
Technical
| d | 1.575 inch |
|---|---|
| D | 1.969 inch |
| B | 1.969 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.165 lbs |
