SKU: NU315ECP/VL0241-SKF

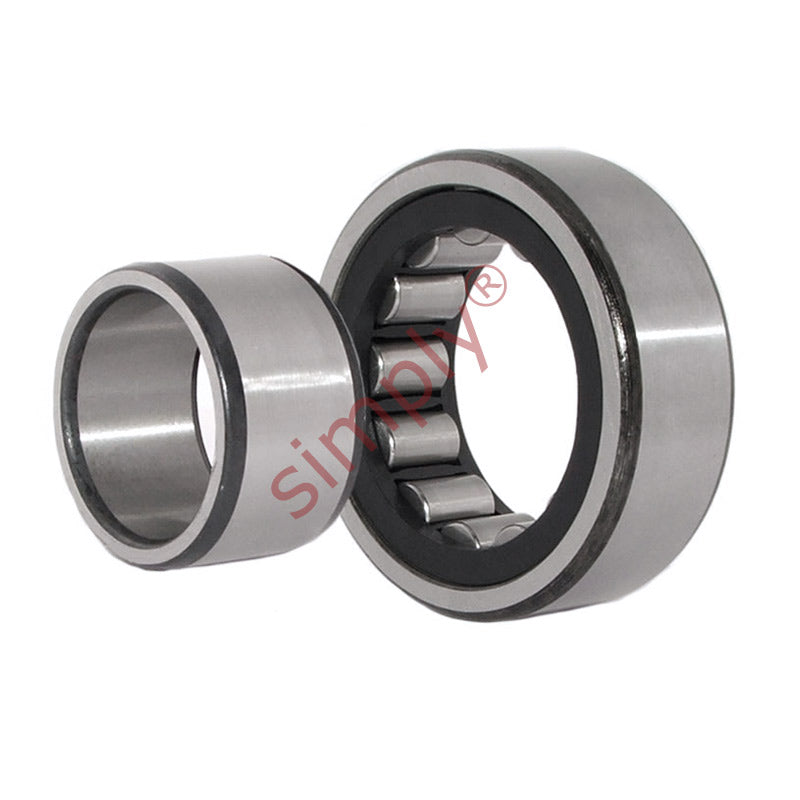

SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
Regular price
£1,015.15
ex VAT£1,218.18inc. VAT
Regular price
Sale price
£1,015.15
ex VAT£1,218.18
inc. VAT
In stock
Price Break
10+
£903.48
19+
£852.72
29+
£842.57
39+
£832.42
49+
£822.27
74+
£812.12
99+
£761.36
199+
£751.21
249+
£741.06
499+
£730.91
999+
£710.60
Share this product
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| D1 | 136mm |
| F | 95mm |
| r1r2 min | 2.1mm |
| r1r4 min | 2.1mm |
| s | 1.8mm |
| da min | 87mm |
| da max | 92mm |
| db min | 97mm |
| Da min | 141mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
