SKU: NKXR35Z-MB

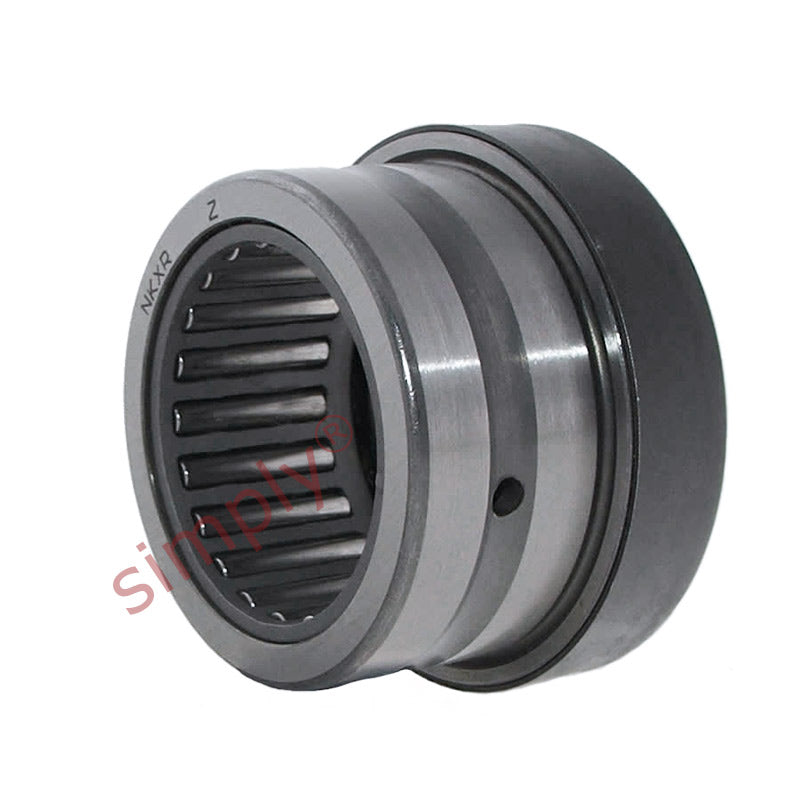

Major Brand NKXR35Z Needle Roller Thrust Bearing without Cover 35x47x30mm
Major Brand NKXR35Z Needle Roller Thrust Bearing without Cover 35x47x30mm
Regular price
£67.07
ex VAT£80.48inc. VAT
Regular price
Sale price
£67.07
ex VAT£80.48
inc. VAT
In stock
Price Break
10+
£59.69
19+
£56.34
29+
£55.67
39+
£55.00
49+
£54.33
74+
£53.66
99+
£50.30
199+
£49.63
249+
£48.96
499+
£48.29
999+
£46.95
Couldn't load pickup availability
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35 |
