SKU: NJ308-E-TVP2-C3-FAG

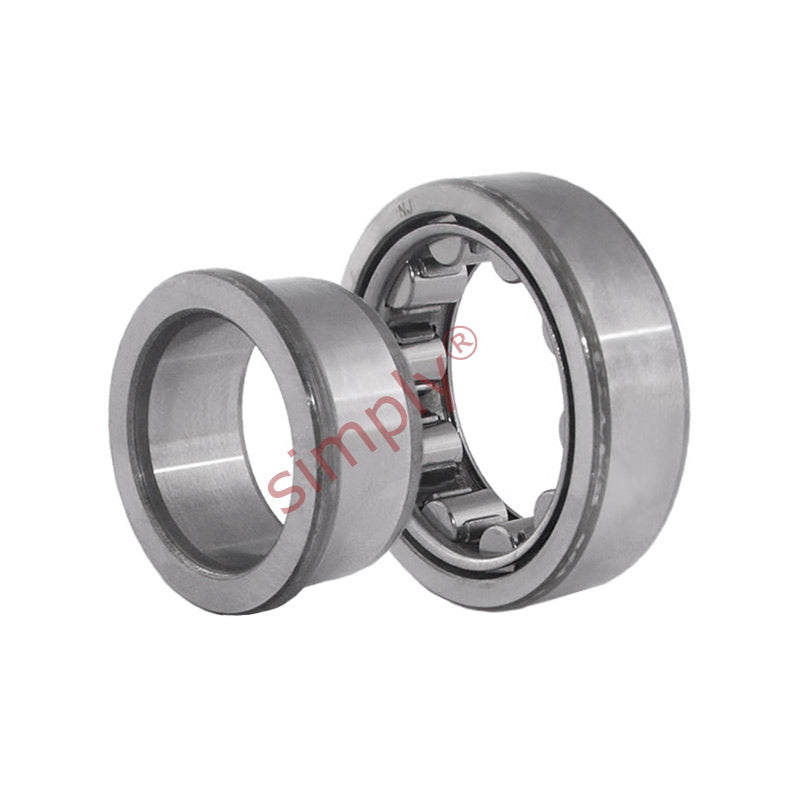

NJ308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x23mm
NJ308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x23mm
Regular price
£54.12
ex VAT£64.94inc. VAT
Regular price
Sale price
£54.12
ex VAT£64.94
inc. VAT
In stock
Price Break
10+
£48.17
19+
£45.46
29+
£44.92
39+
£44.38
49+
£43.84
74+
£43.30
99+
£40.59
199+
£40.05
249+
£39.51
499+
£38.97
999+
£37.88
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 40 |
|---|---|
| D | 90 |
| B | 23 |
| r min | 1.5 |
| r1 min | 1.5 |
| s | 1.3 |
| E | 80 |
| F | 52 |
| D1 | 75.9 |
| d1 | 57.6 |
| da min | 49 |
| da max | 51 |
| dc min | 60 |
| Da max | 81 |
| ra max | 1.5 |
| Dynamic load | 95000 N |
| Static load | 78000 N |
| Fatigue limit load | 12900 N |
| Limiting speed | 7500 rpm |
| Reference speed | 7300 rpm |
| Weight | 0.674 kg |
