SKU: NAO15x28x13-EU

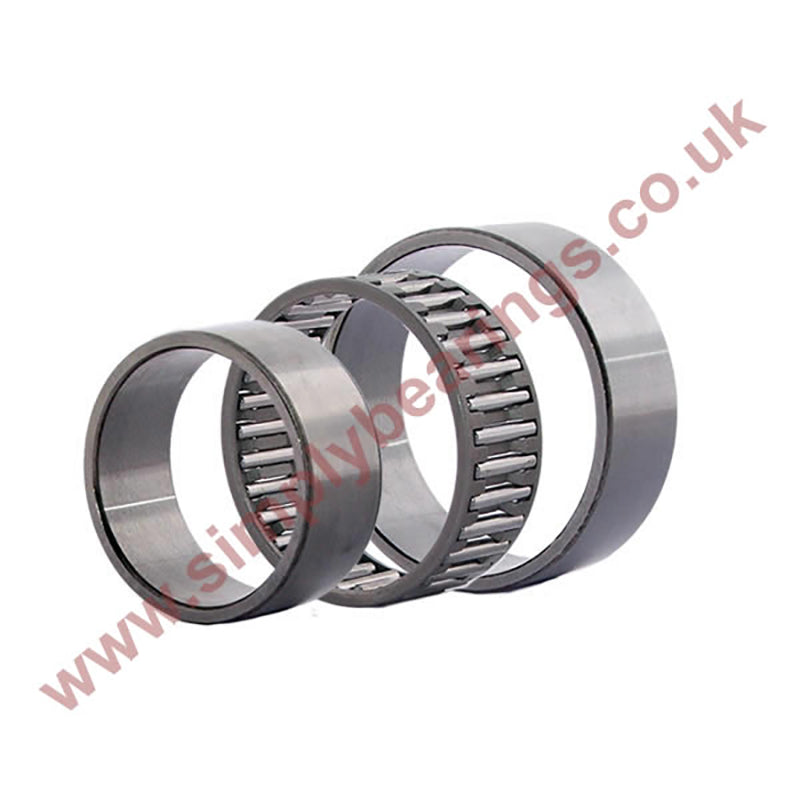

NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
£9.19
ex VAT£11.03inc. VAT
Regular price
Sale price
£9.19
ex VAT£11.03
inc. VAT
In stock
Price Break
10+
£8.18
19+
£7.72
29+
£7.63
39+
£7.54
49+
£7.44
74+
£7.35
99+
£6.89
199+
£6.80
249+
£6.71
499+
£6.62
999+
£6.43
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 13mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 13mm |
| Dynamic load C | 9520 N |
| Static load Co | 14600 N |
| Fatigue load limit Pu | 1660 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| E | 24mm |
| F | 20mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 23.6mm |
| db | 19.5mm |
| Da | 24.3mm |
| Db | 20.4mm |
| ra max | 0.3mm |
| Weight | 29 g |
