SKU: MSC85-RHP

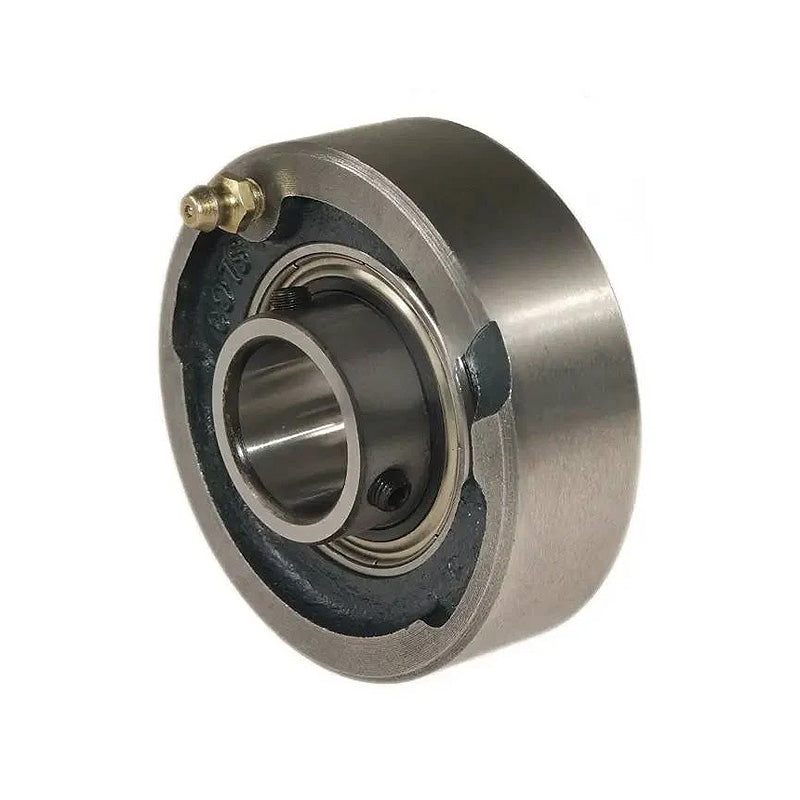

RHP MSC85 Cast Iron Cartridge Unit with 85mm Bore Insert 188.94mm Outside Diameter
RHP MSC85 Cast Iron Cartridge Unit with 85mm Bore Insert 188.94mm Outside Diameter
Regular price
£476.70
ex VAT£572.04inc. VAT
Regular price
Sale price
£476.70
ex VAT£572.04
inc. VAT
In stock
Price Break
10+
£424.27
20+
£400.43
30+
£395.66
40+
£390.90
50+
£386.13
75+
£381.36
100+
£357.53
200+
£352.76
250+
£347.99
500+
£343.23
1000+
£333.69
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 188.94mm
- Style:
- MSC
Technical
Technical
| Bore | 85mm |
|---|---|
| L | 188.937mm |
| A | 63.5mm |
| A1 | 83.29mm |
| B | 85.72mm |
| s | 34.18mm |
| d1 | 106.02 |
| Dynamic load Cr | 83000 N |
| Static load Cor | 64000 N |
| Rex max speed | 2000 rpm |
| Weight | 9.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-85G+insonly">1085-85G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
