SKU: K22X27X26-MB

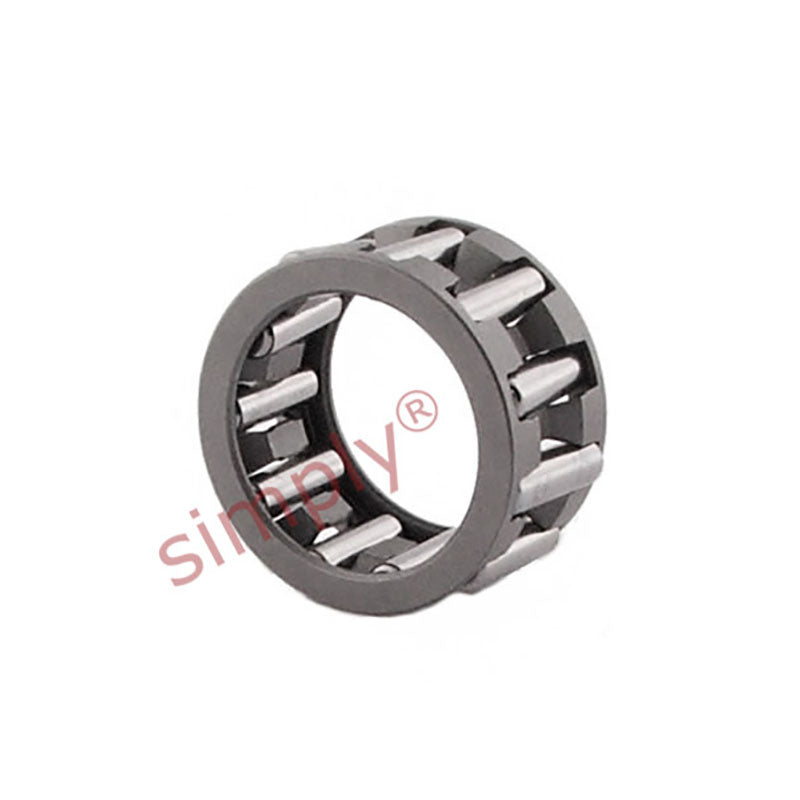

Major Brand K22x27x26 Needle Roller Cage Assembly 22x27x26mm
Major Brand K22x27x26 Needle Roller Cage Assembly 22x27x26mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
10+
€7,46
19+
€7,04
29+
€6,96
39+
€6,87
49+
€6,79
74+
€6,70
99+
€6,29
199+
€6,20
249+
€6,12
499+
€6,03
999+
€5,87
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 27mm
- Width:
- 26mm
Technical
Technical
| Fw | 22mm |
|---|---|
| Ew | 27mm |
| U | 26mm |
| Dynamic load | 18300 N |
| Static load | 27000 N |
| Fatigue load limit Pu | 3250 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| Seal | G/SD22x28x4 |
| Weight | 18 g |
