SKU: K.14x18x15

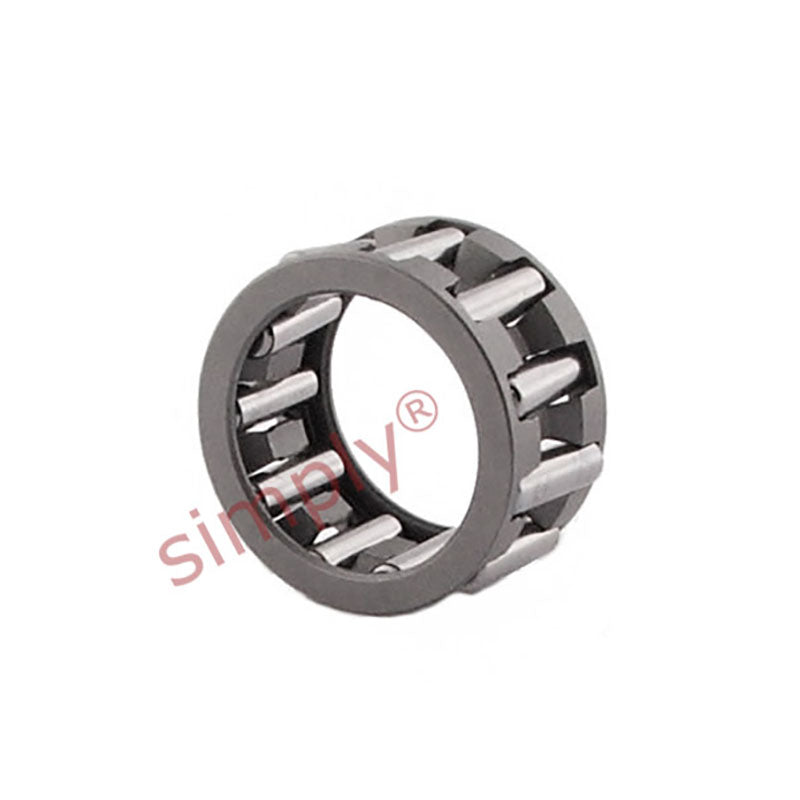

Major Brand K14x18x15 Needle Roller Cage Assembly 14x18x15mm
Major Brand K14x18x15 Needle Roller Cage Assembly 14x18x15mm
Regular price
£9.09
ex VAT£10.91inc. VAT
Regular price
Sale price
£9.09
ex VAT£10.91
inc. VAT
In stock
Price Break
10+
£8.09
19+
£7.64
29+
£7.55
39+
£7.46
49+
£7.37
74+
£7.27
99+
£6.82
199+
£6.73
249+
£6.64
499+
£6.55
999+
£6.37
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 18mm
- Width:
- 15mm
Technical
Technical
| Fw | 14mm |
|---|---|
| Ew | 18mm |
| U | 15mm |
| Dynamic load | 9500 N |
| Static load | 12300 N |
| Fatigue load limit Pu | 1570 N |
| Speed in grease | 17400 rpm |
| Speed in oil | 25000 rpm |
| Weight | 5 g |
