SKU: H307C-SKF

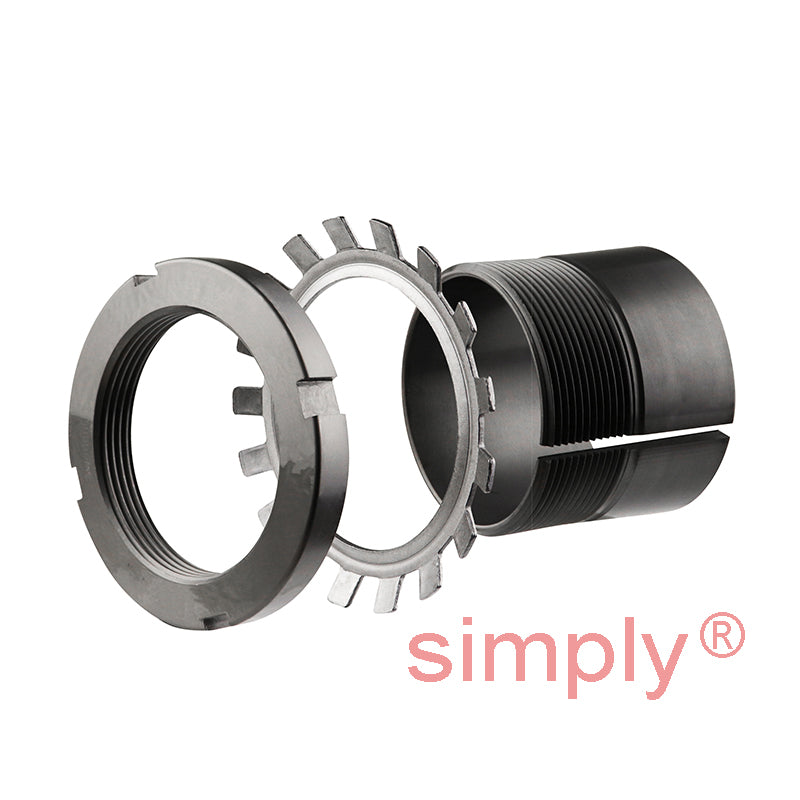

SKF H307C Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
SKF H307C Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Regular price
£27.41
ex VAT£32.89inc. VAT
Regular price
Sale price
£27.41
ex VAT£32.89
inc. VAT
In stock
Price Break
2+
£24.40
5+
£23.03
10+
£22.75
20+
£22.48
49+
£22.20
74+
£21.93
99+
£20.56
199+
£20.29
249+
£20.01
499+
£19.74
999+
£19.19
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 35mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 30mm |
| d | 35mm |
| d3 | 52mm |
| B1 | 35mm |
| B2 | 10mm |
| G | Thread 35x1.5mm |
| Weight | 0.14 kg |
| --- | Assembly Parts |
| Sleeve | H307C |
| Nut | KM7 |
| Washer | MB7C |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2207K-2RS+taper>2207K-2RS</a> |
