SKU: GRAE45-NPP-B-INA

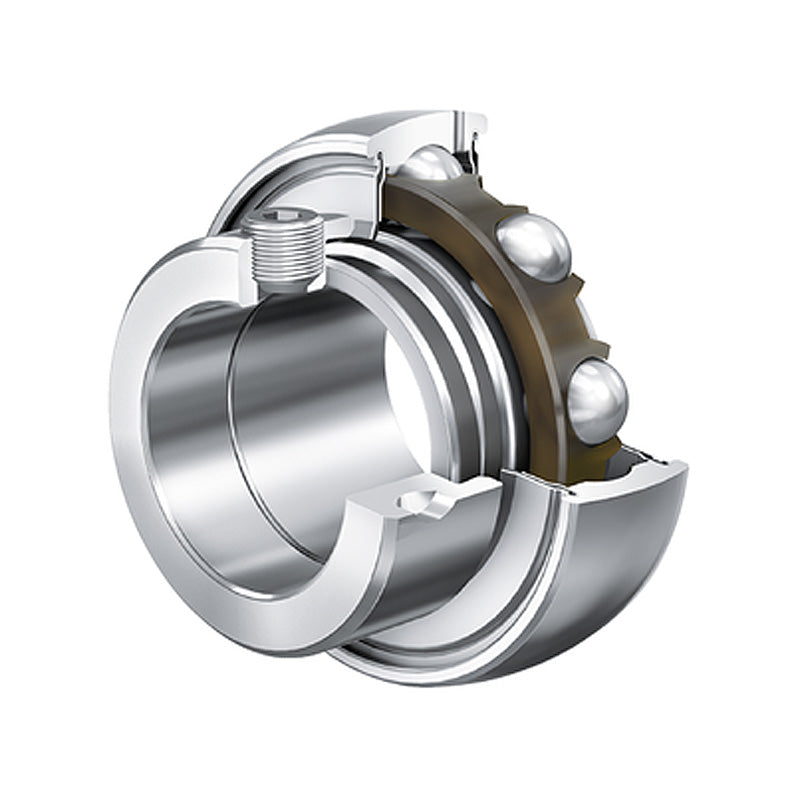

INA GRAE45XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 45x85x43.8mm
INA GRAE45XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 45x85x43.8mm
Regular price
£46.11
ex VAT£55.33inc. VAT
Regular price
Sale price
£46.11
ex VAT£55.33
inc. VAT
In stock
Price Break
3+
£41.04
5+
£38.73
10+
£38.27
15+
£37.81
20+
£37.35
30+
£36.89
40+
£34.58
50+
£34.12
60+
£33.66
75+
£33.20
100+
£32.28
Description
Description
|
INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 43.8mm
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| Ca | 6.4mm |
| d2 | 54.3mm |
| d3 max | 63mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.7 kg |
