SKU: GRA100-NPP-B-AS2/V-INA

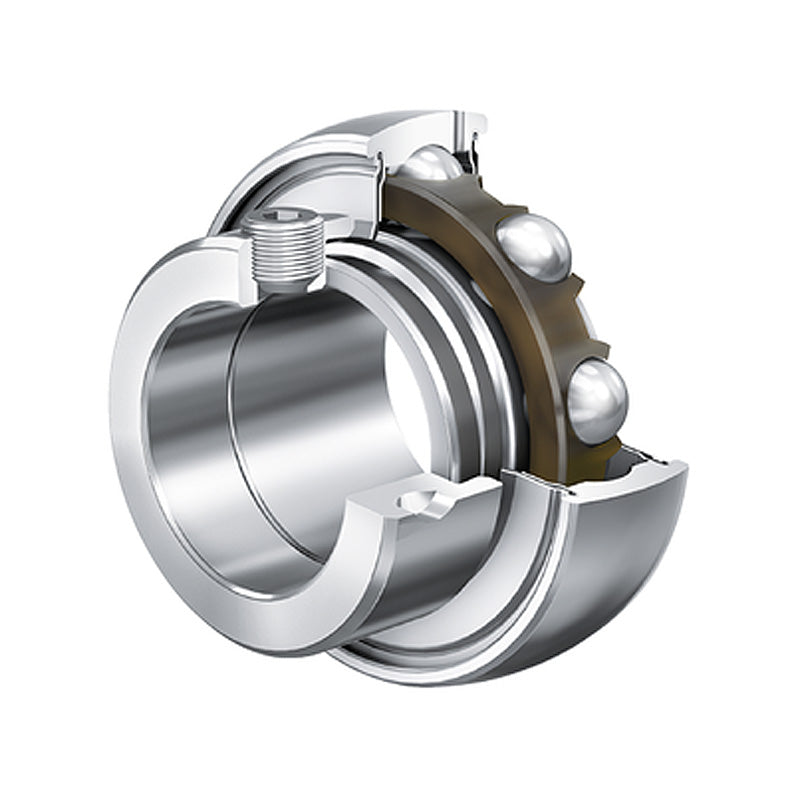

INA GRA100NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25.4x52x31mm
INA GRA100NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25.4x52x31mm
Regular price
£29.12
ex VAT£34.94inc. VAT
Regular price
Sale price
£29.12
ex VAT£34.94
inc. VAT
In stock
Price Break
3+
£25.92
5+
£24.46
10+
£24.17
15+
£23.88
20+
£23.59
30+
£23.30
40+
£21.84
50+
£21.55
60+
£21.26
75+
£20.97
100+
£20.38
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.4mm = 1
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 1 inch |
|---|---|
| d | 25.4mm |
| Dsp | 2.0472 inch |
| Dsp | 52mm |
| B1 | 1.2200 inch |
| B1 | 31mm |
| B | 0.843 inch |
| C | 0.591 inch |
| Ca | 0.154 inch |
| d2 | 1.201 inch |
| d3 | 1.476 inch |
| S | 0.295 inch |
| W | 1/8 inch |
| Dynamic load Cr | 3150 lbf |
| Dynamic load Cr | 14000 N |
| Static load C0r | 1760 lbf |
| Static load C0r | 7800 N |
| Weight | 0.42 lbs |
