SKU: FY60TF/VA201-SKF

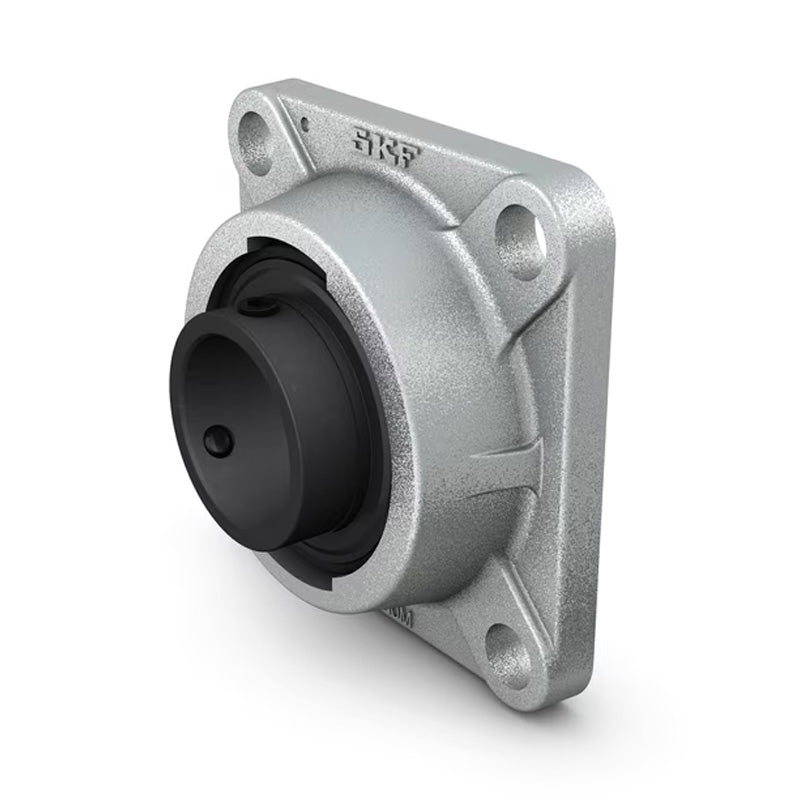

SKF FY60TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 60mm
SKF FY60TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 60mm
Regular price
£447.07
ex VAT£536.48inc. VAT
Regular price
Sale price
£447.07
ex VAT£536.48
inc. VAT
In stock
Price Break
10+
£397.89
19+
£375.54
29+
£371.07
39+
£366.59
49+
£362.12
74+
£357.65
99+
£335.30
199+
£330.83
249+
£326.36
499+
£321.89
999+
£312.95
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| G | 16mm |
| T | 73.7mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 4.65 kg |
