SKU: FY50TF/VA201-SKF

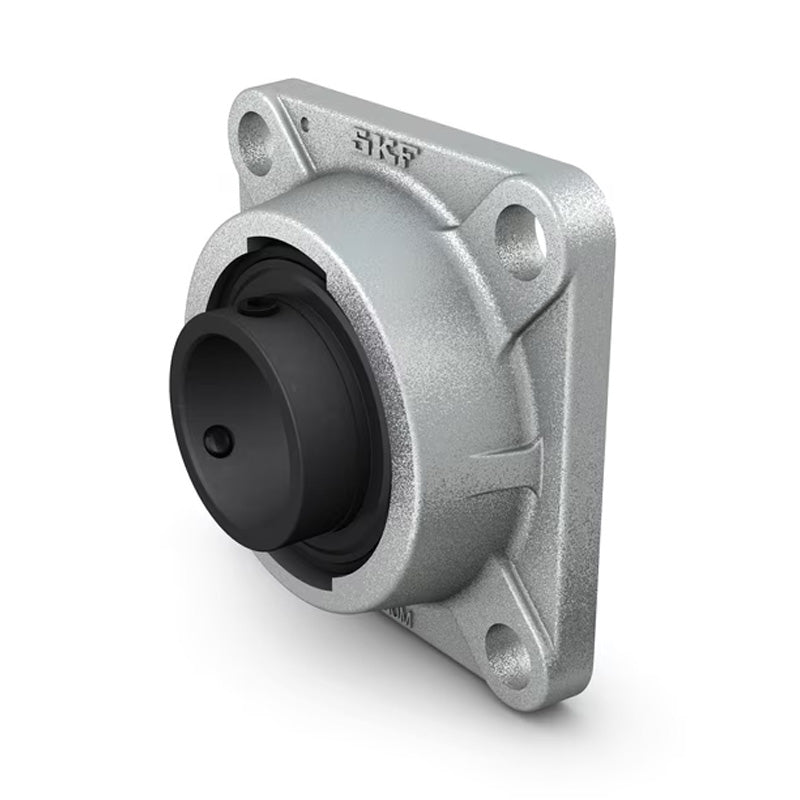

SKF FY50TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
SKF FY50TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
Regular price
£291.35
ex VAT£349.62inc. VAT
Regular price
Sale price
£291.35
ex VAT£349.62
inc. VAT
In stock
Price Break
10+
£259.30
19+
£244.73
29+
£241.82
39+
£238.91
49+
£235.99
74+
£233.08
99+
£218.51
199+
£215.60
249+
£212.69
499+
£209.77
999+
£203.94
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| N | 15.9mm |
| G | 14mm |
| T | 60.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.49 kg |
