SKU: FY1.3/4TF-SKF

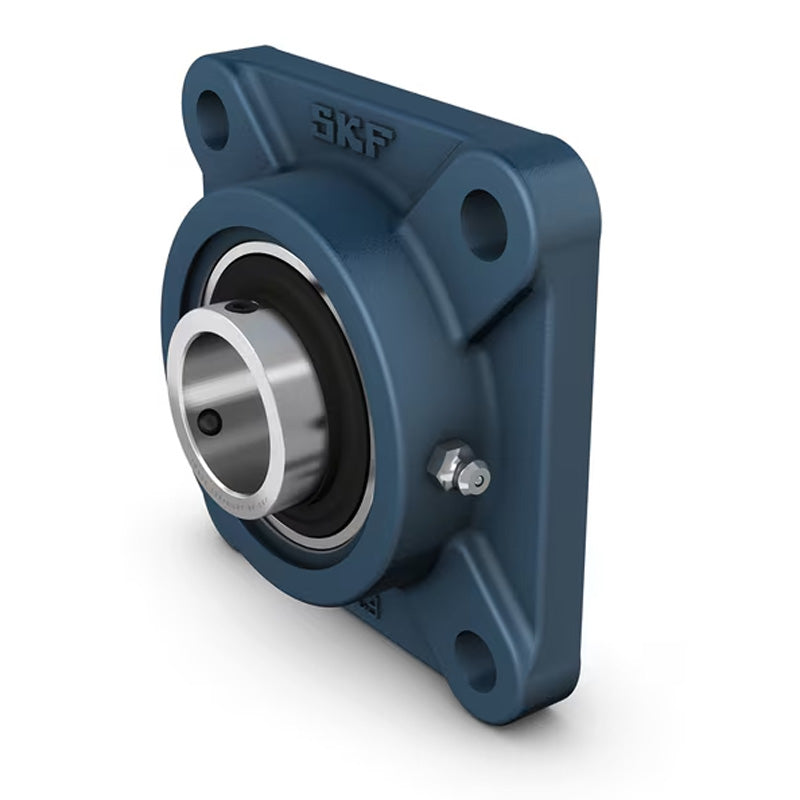

SKF FY1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
SKF FY1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
Regular price
£90.87
ex VAT£109.04inc. VAT
Regular price
Sale price
£90.87
ex VAT£109.04
inc. VAT
In stock
Price Break
10+
£80.87
20+
£76.33
30+
£75.42
40+
£74.51
50+
£73.60
75+
£72.69
100+
£68.15
200+
£67.24
250+
£66.33
500+
£65.42
1000+
£63.61
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.15 kg |
| Housing | FY509M |
| Insert | YAR209-112-2F |
