SKU: FC60-RHP

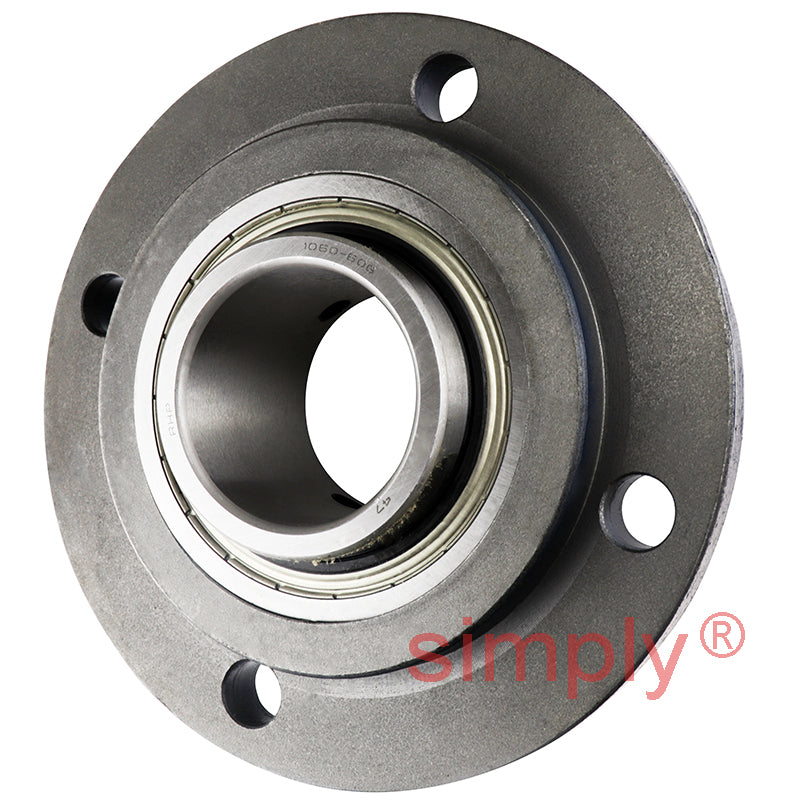

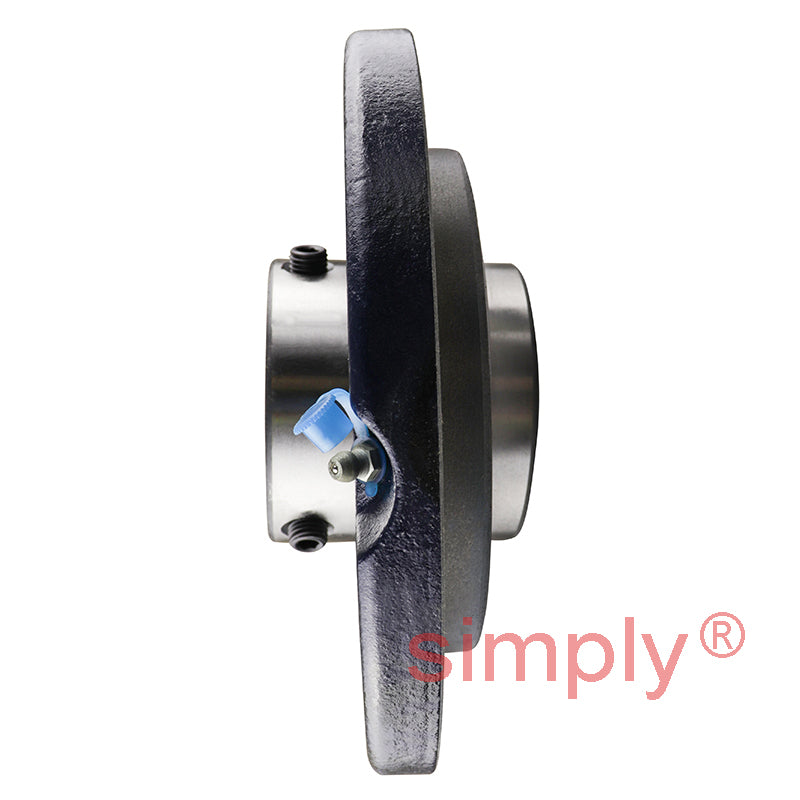

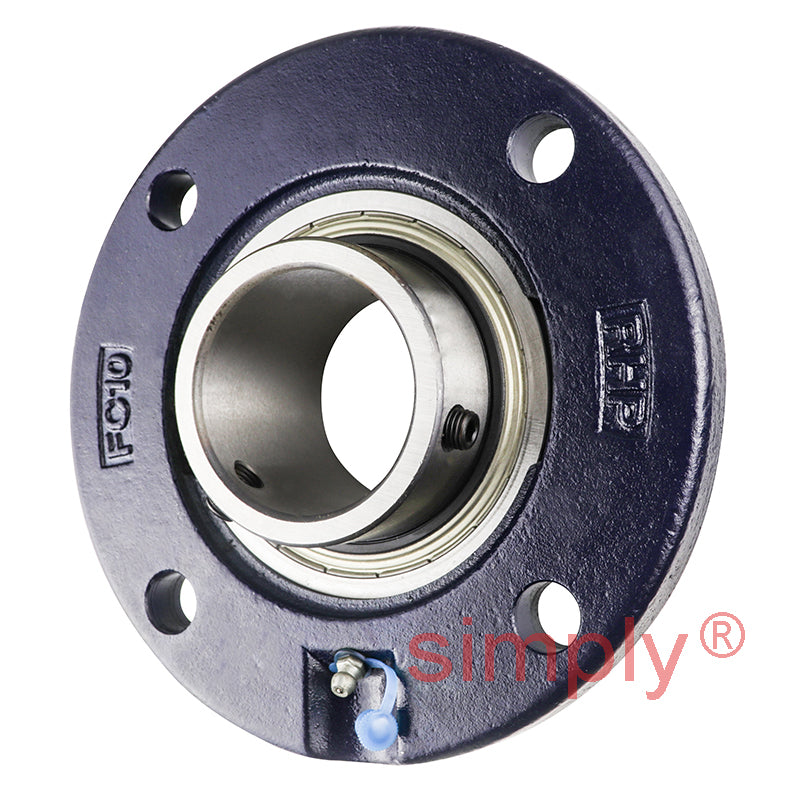

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
£151.46 ex VAT£181.75inc. VAT
£151.46 ex VAT£181.75 inc. VAT
Sale Sold out

In stock

Price Break
10+ £134.80
19+ £127.23
29+ £125.71
39+ £124.20
49+ £122.68
74+ £121.17
99+ £113.60
199+ £112.08
249+ £110.57
499+ £109.05
999+ £106.02
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
FC
Pitch Circle Diameter:
160mm
Technical
Bore 60mm
L 195mm
H 135mm
J 160mm
G 16mm
A 29mm
A1 38.65mm
A5 16mm
B 65.07mm
s 25.45mm
d1 75.34mm
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 4.7 kg
Insert <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
