SKU: FC50A-RHP

RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
£89.18 ex VAT£107.02inc. VAT
£89.18 ex VAT£107.02 inc. VAT
Sale Sold out

In stock

Price Break
10+ £79.37
19+ £74.91
29+ £74.02
39+ £73.13
49+ £72.24
74+ £71.34
99+ £66.89
199+ £65.99
249+ £65.10
499+ £64.21
999+ £62.43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

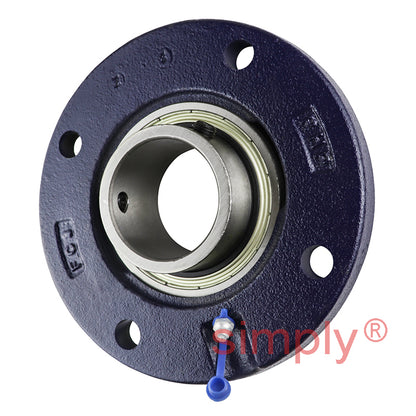

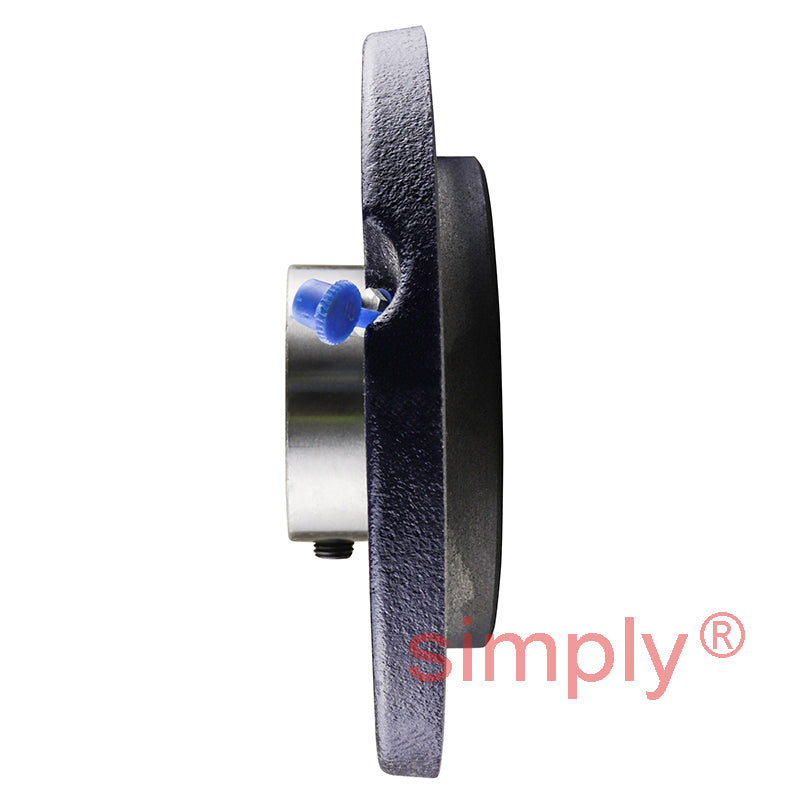

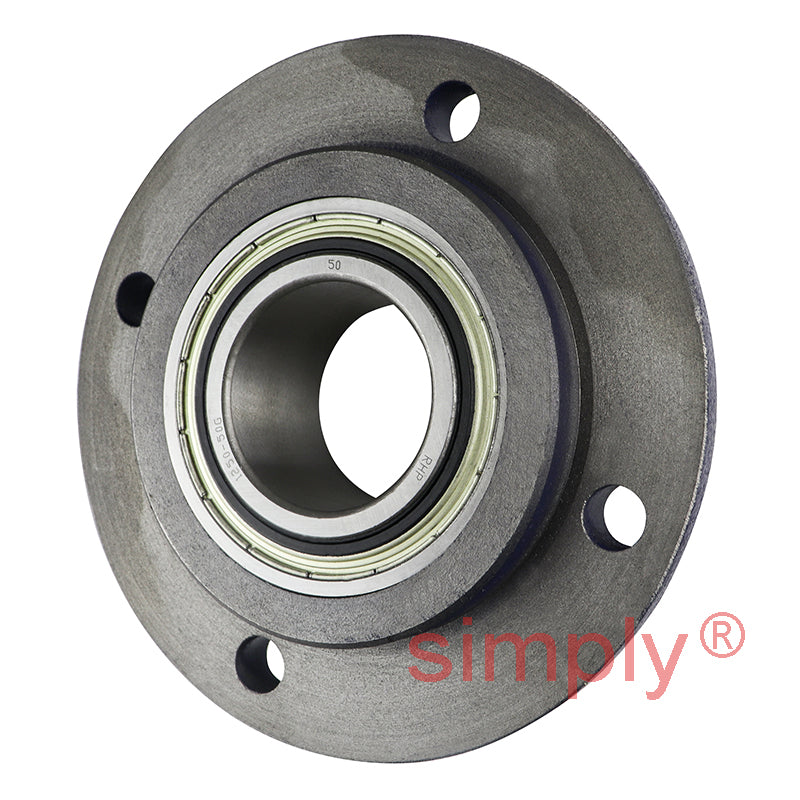

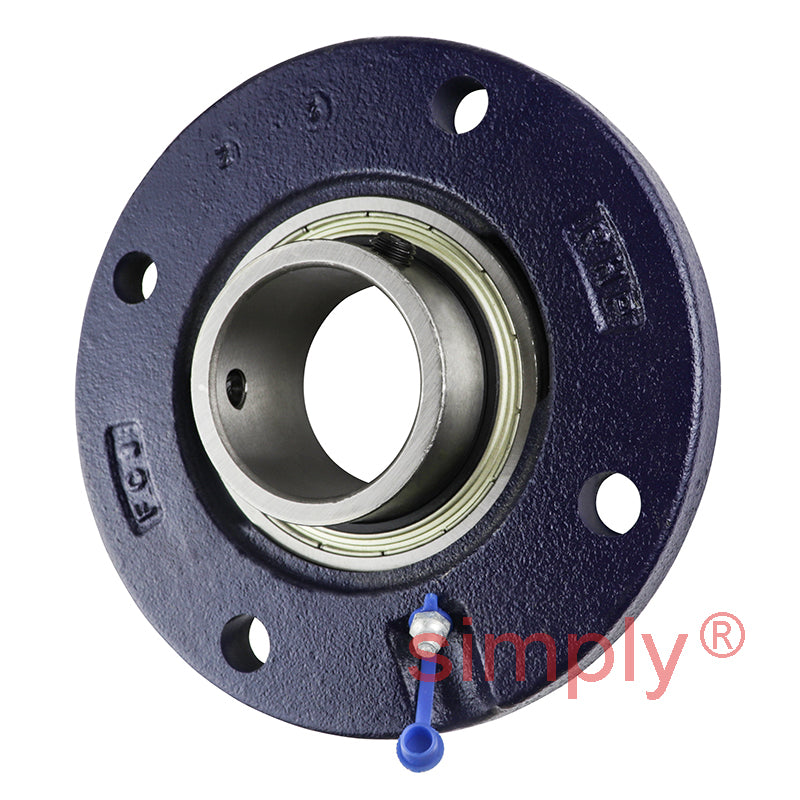

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
FC
Pitch Circle Diameter:
135mm
Technical
Bore 50mm
L 165mm
H 110mm
J 135mm
G 12mm
A 25mm
A1 31.52mm
A5 13mm
B1 43.5mm
s1 11.04mm
d1 62.2mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-50AG+insonly">1250-50AG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
