SKU: FC25DEC-RHP

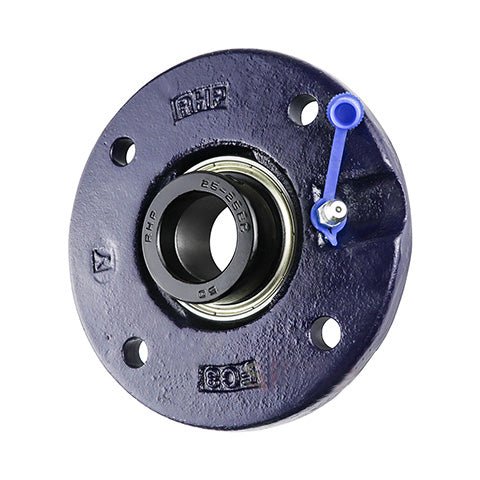

RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
£51.88
ex VAT£62.26inc. VAT
Regular price
Sale price
£51.88
ex VAT£62.26
inc. VAT
In stock
Price Break
10+
£46.17
19+
£43.58
29+
£43.06
39+
£42.54
49+
£42.02
74+
£41.50
99+
£38.91
199+
£38.39
249+
£37.87
499+
£37.35
999+
£36.32
Couldn't load pickup availability
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A3 | 24.41mm |
| A5 | 9mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
