SKU: FC25A-RHP

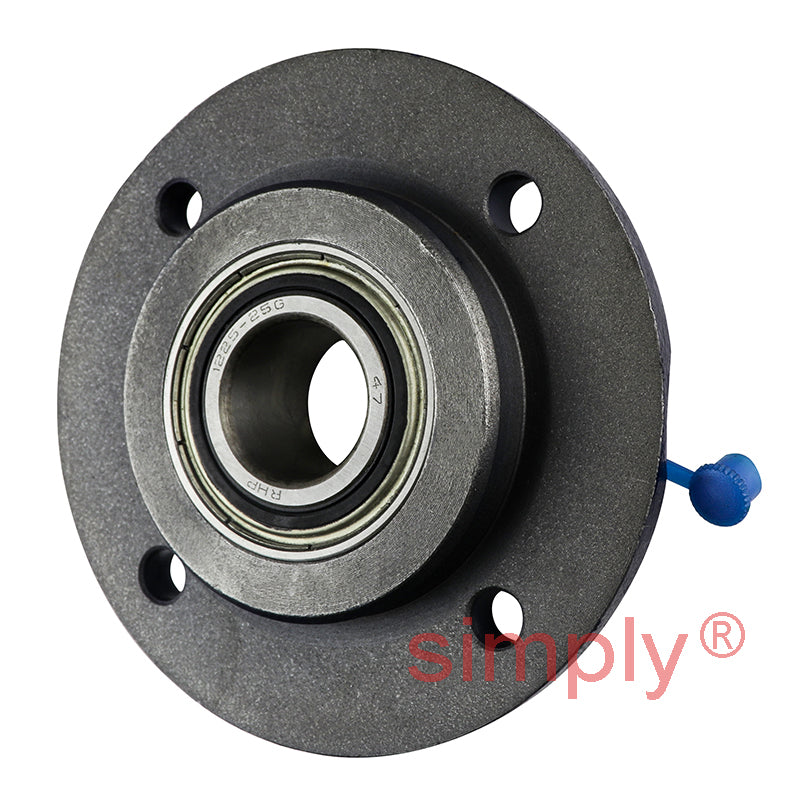

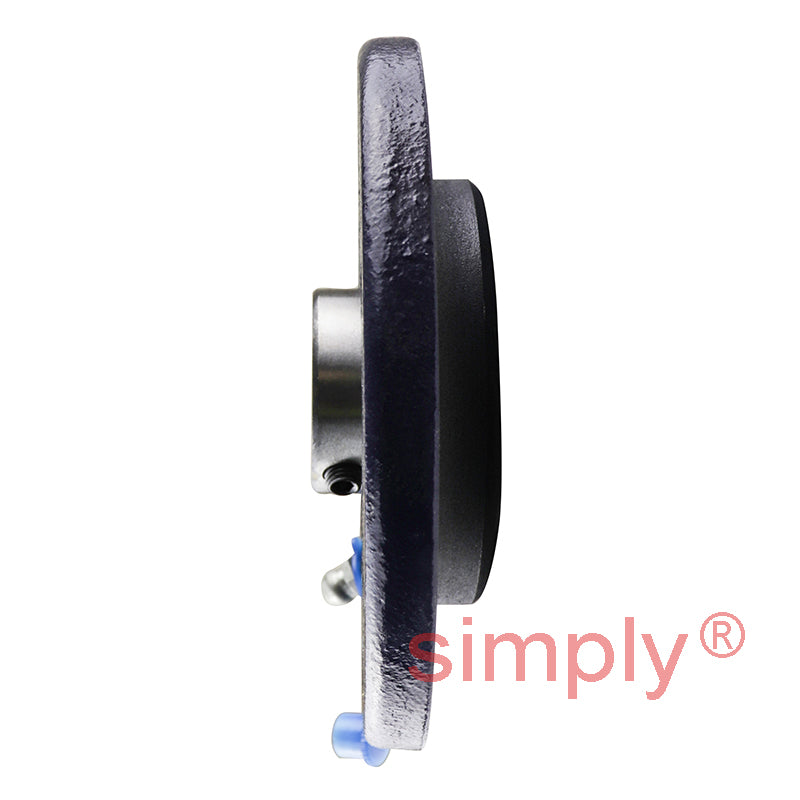

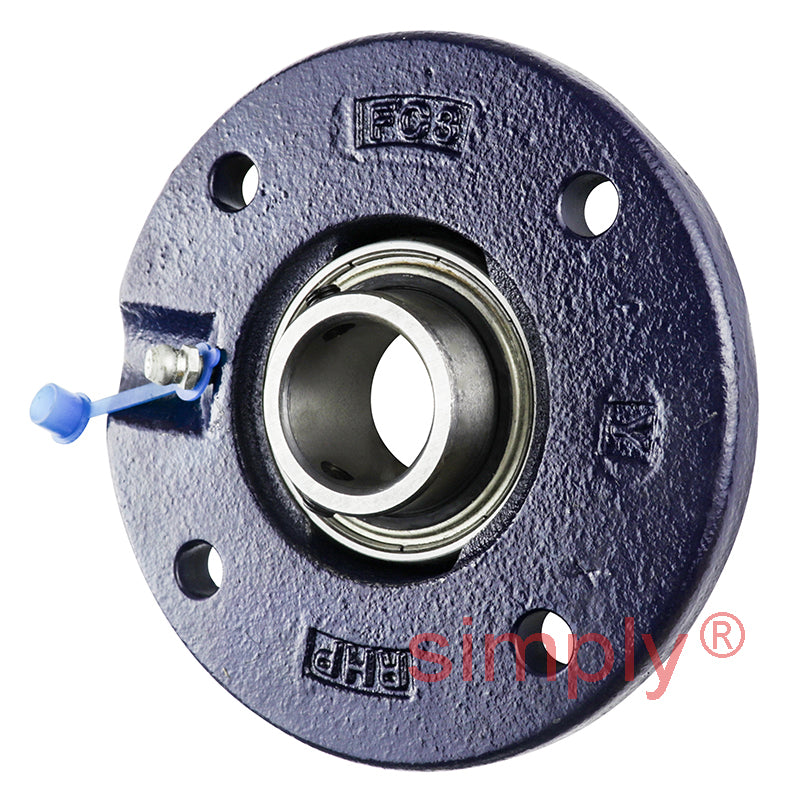

RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
£45.12 ex VAT£54.14inc. VAT
£45.12 ex VAT£54.14 inc. VAT
Sale Sold out

In stock

Price Break
10+ £40.16
19+ £37.90
29+ £37.45
39+ £37.00
49+ £36.55
74+ £36.10
99+ £33.84
199+ £33.39
249+ £32.94
499+ £32.49
999+ £31.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
FC
Pitch Circle Diameter:
90mm
Technical
Bore 25mm
L 115mm
H 70mm
J 90mm
G 8mm
A 19mm
A1 17.34mm
A5 9mm
B1 27.35mm
s1 7.56mm
d1 34.01mm
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
