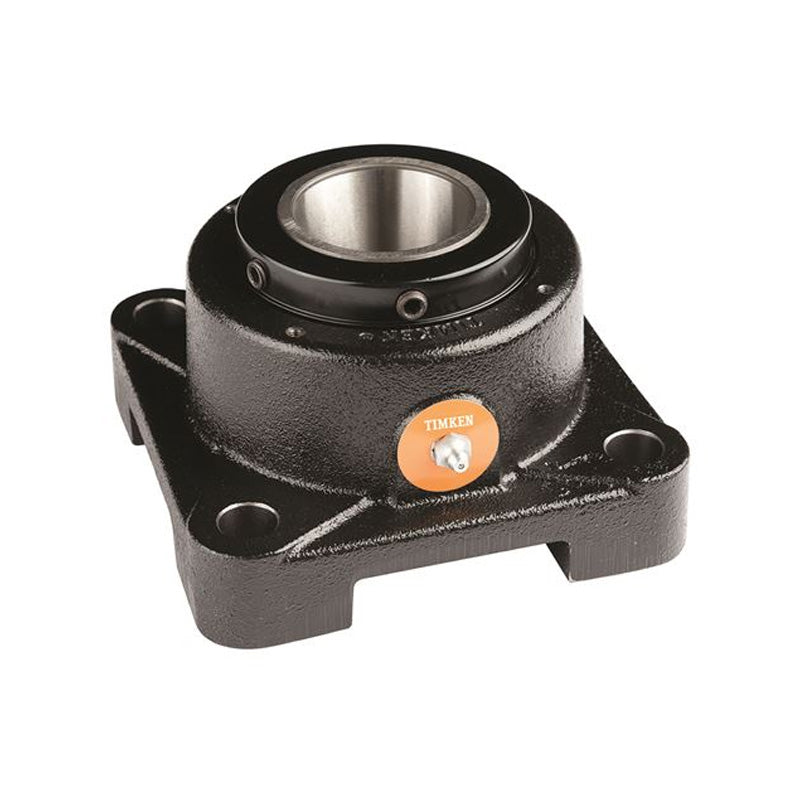

TIMKEN E-4BF-TRB-1-5/8 Mounted Taper Roller Four Bolt Square Housing for 1-5/8 inch Shafts

Timken® Type E Housed 4 Bolt Square Bearing Units: Timken E series housings with pre-fitted back to back sealed taper roller bearings and seals. Designed to strengthen the performance of your equipment with industry-leading premium tapered roller bearings. The housings are ASTM A48 Grade 30 cast iron with an electro-deposition coating (E-coating) providing better corrosion resistance than the industry standard powder coatings.
The units all have High-Performance Seals fitted as standard and help to lower maintenance costs with optimized lip contact to improve grease retention and drastically reduce ingress of contamination and moisture compared to other leading brands designs. (Seven times more effective preventing water ingress compared to competitors designs and 40 percent more effective in preventing mud and salt slurry ingress compared to competitors designs).

Features

• All surfaces are protected for corrosion resistance.
• Increased locking power.
• Reduces set screw back out even in the most severe applications.
• 65-degree set screw angle for maximum locking power and greatly reduced set screw back out.
• Set screw with nylon patch.
• Machined steel.
• 47 percent increase in bearing life over competitors designs.
• Improved lubrication performance.
• Reduced internal stresses.
• Enhanced performance.
• 12 percent higher load capacity than the competitors designs.
• Optimized bearing profiles.
• Improved surface textures.
• Super-clean, high-alloy bearing steel.
• Better corrosion resistance than black oxide or powder coating.
• Bolt holes and shaft centerline dimensions interchangeable, conforming with industry practice.

Brand / Quality:

TIMKEN - High Quality

Inside Diameter:

41.28mm = 1.625 (1-5/8) inch

Style:

EP4FTRB

Bolt Hole Centres:

104.78mm = 4.125 (4-1/8) inch
