SKU: CSA.205-14

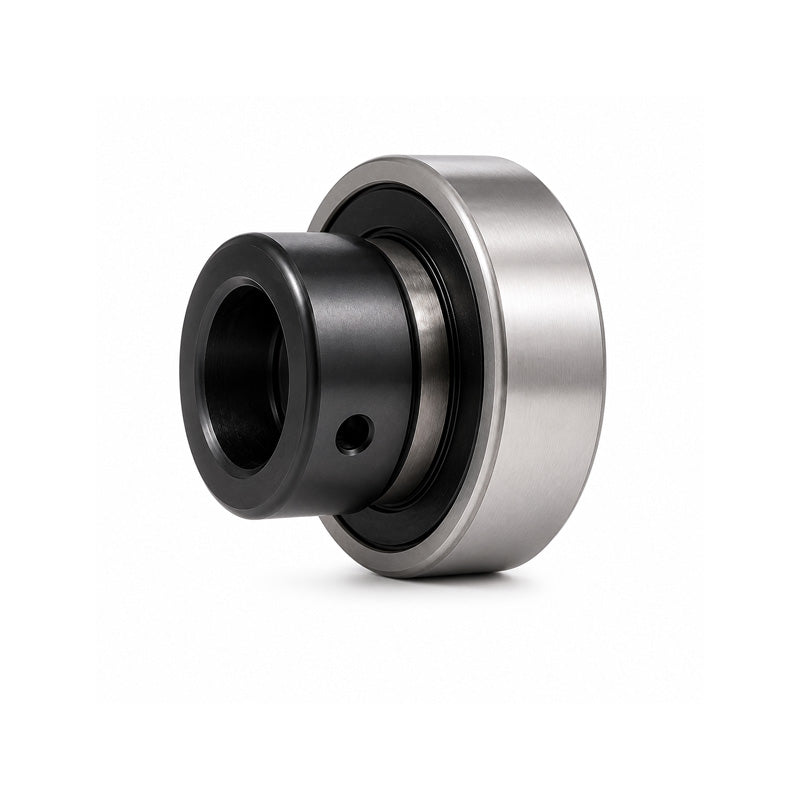

CSA205-14 Imperial Bearing Insert with Locking Collar 7/8 inch Bore 52mm Outside Dia
CSA205-14 Imperial Bearing Insert with Locking Collar 7/8 inch Bore 52mm Outside Dia
Regular price
£9.96
ex VAT£11.95inc. VAT
Regular price
Sale price
£9.96
ex VAT£11.95
inc. VAT
In stock
Price Break
3+
£8.86
4+
£8.37
9+
£8.27
19+
£8.17
49+
£8.07
99+
£7.97
499+
£7.47
999+
£7.37
1999+
£7.27
2999+
£7.17
4999+
£6.97
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- CSA
Technical
Technical
| d | 7/8 inch |
|---|---|
| Be | 14mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
