SKU: 7203BECBP-SKF

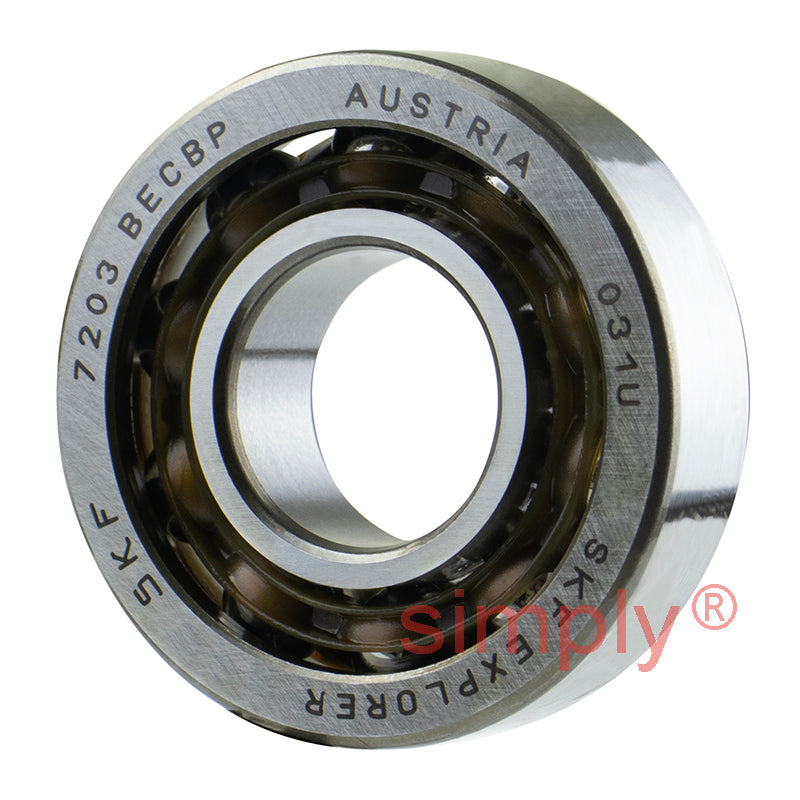

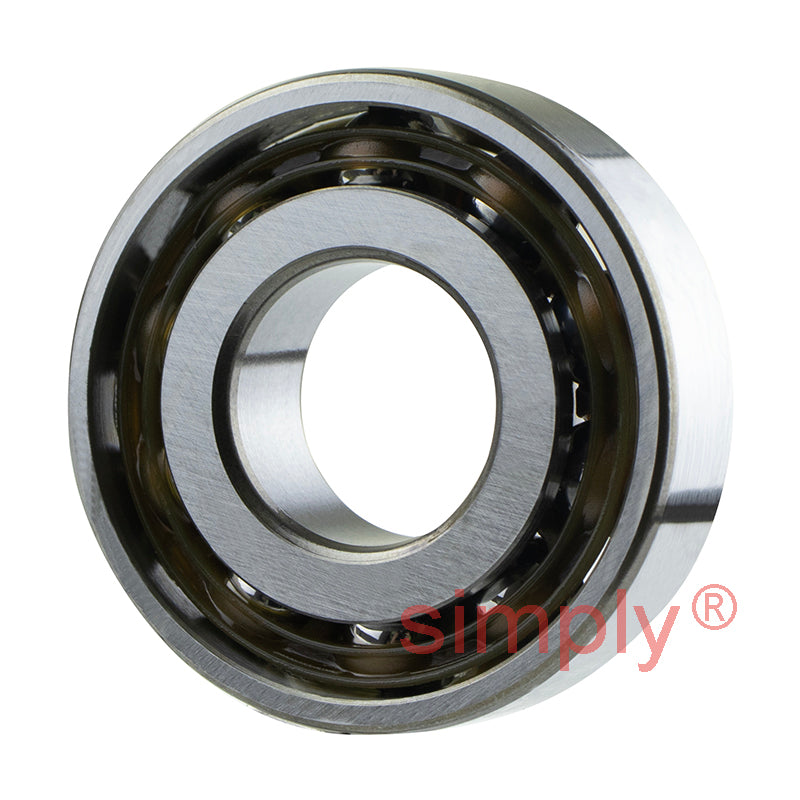

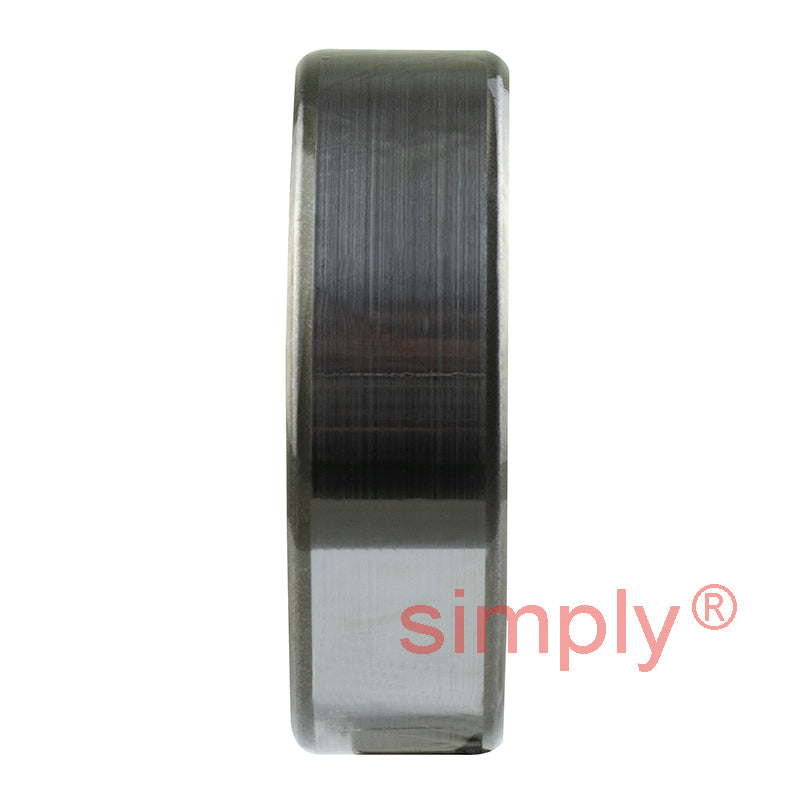

SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
Regular price
£38.90
ex VAT£46.68inc. VAT
Regular price
Sale price
£38.90
ex VAT£46.68
inc. VAT
Equivalent to: 7203BECBP
In stock
Price Break
10+
£34.62
19+
£32.68
29+
£32.29
39+
£31.90
49+
£31.51
74+
£31.12
99+
£29.18
199+
£28.79
249+
£28.40
499+
£28.01
999+
£27.23
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load Cr | 11 kN |
| Static load Cor | 5.85 kN |
| Fatigue load limit Pu | 0.25 kN |
| Reference speed | 22000 rpm |
| Limit speed | 22000 rpm |
| Weight | 0.064 kg |
| d1 | 26.3mm |
| d2 | 21.7mm |
| D1 | 31.2mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| a | 18mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| Db max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
