SKU: 70XL-037-35

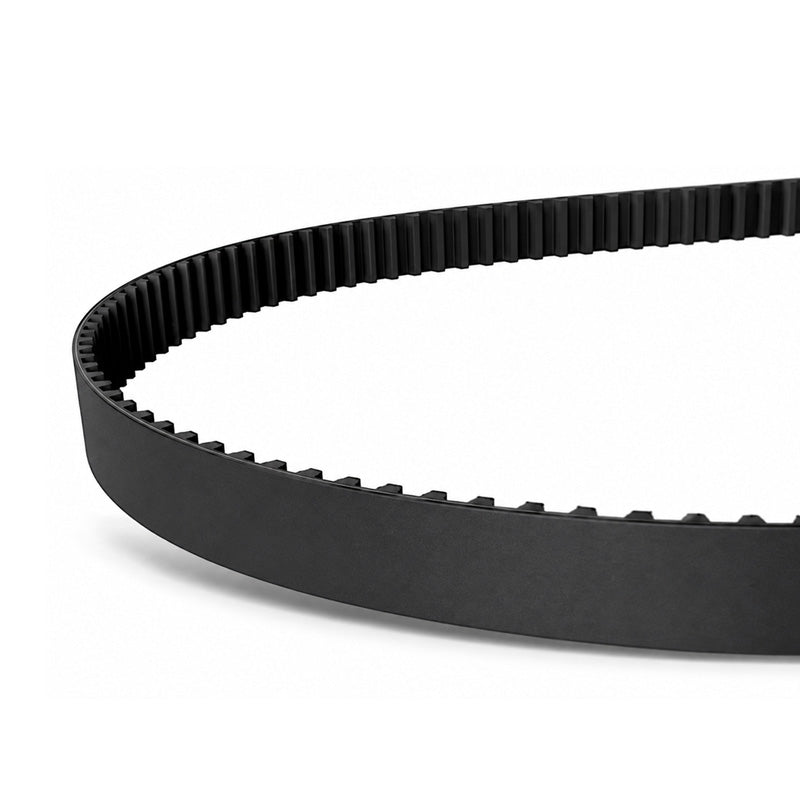

Major Brand 70XL037 Synchronous Toothed Belt 0.38 inch Wide 7 inch Length 35 Teeth
Major Brand 70XL037 Synchronous Toothed Belt 0.38 inch Wide 7 inch Length 35 Teeth
Regular price
£3.91
ex VAT£4.69inc. VAT
Regular price
Sale price
£3.91
ex VAT£4.69
inc. VAT
In stock
Price Break
3+
£3.48
5+
£3.28
10+
£3.24
15+
£3.21
20+
£3.17
30+
£3.13
40+
£2.93
50+
£2.89
60+
£2.85
75+
£2.81
100+
£2.74
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 9.53mm = 3/8 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 177.8mm = 7 inch
- Number of Teeth:
- 35
Technical
Technical
| Belt width | 0.38 inch = 9.53mm |
|---|---|
| Pitch length | 7 inch = 177.8mm |
| Number of teeth | 35 |
| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
