SKU: 6316-2NSL/C3-NACHI

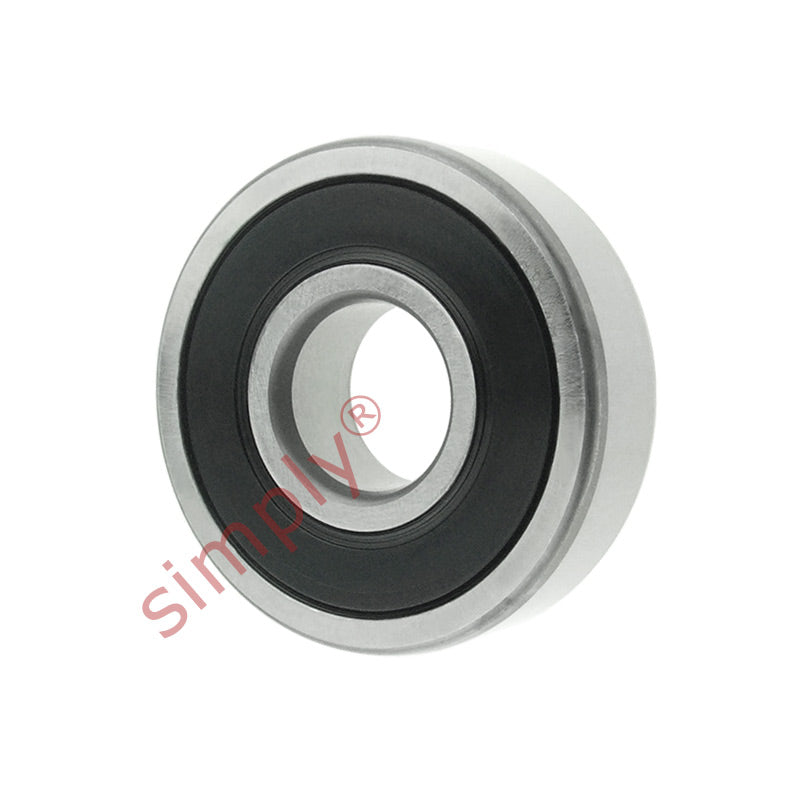

NACHI 63162NSLC3 Contact Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
NACHI 63162NSLC3 Contact Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
Regular price
£192.19
ex VAT£230.63inc. VAT
Regular price
Sale price
£192.19
ex VAT£230.63
inc. VAT
Equivalent to: 6316NSLC3
In stock
Price Break
5+
£171.05
9+
£161.44
19+
£159.52
29+
£157.59
49+
£155.67
74+
£153.75
99+
£144.14
199+
£142.22
249+
£140.30
499+
£138.38
999+
£134.53
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6316NSLC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 80mm |
|---|---|
| Outside Diameter D | 170mm |
| Width B | 39mm |
| Min radius r | 2.1mm |
| Dynamic load | 123000 kN |
| Static load | 86500 kN |
| Max speed | 4000 rpm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Weight | 3.59 kg |
