SKU: 6205-HT-330

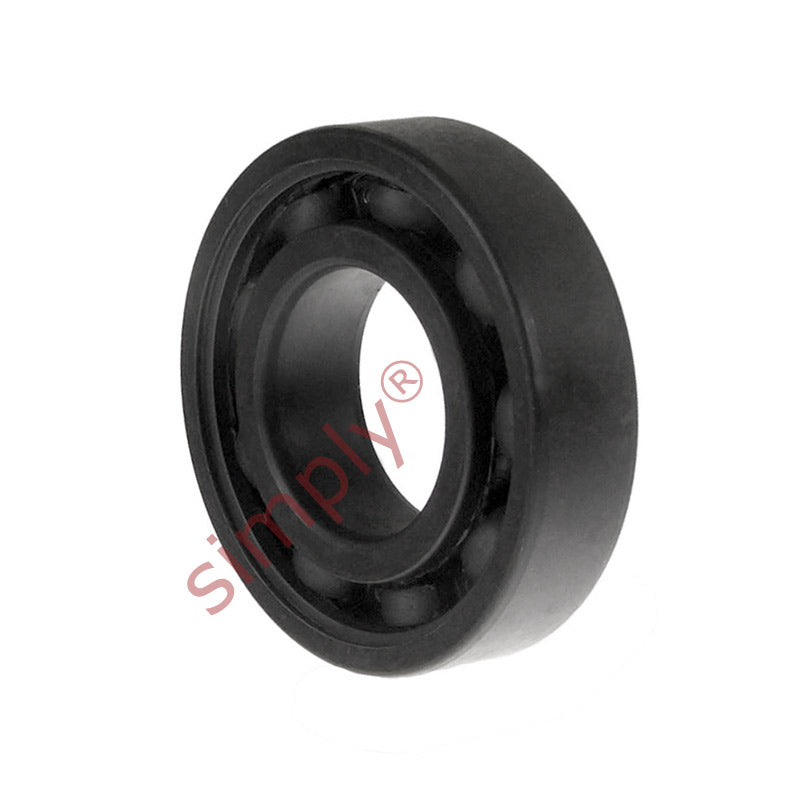

6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
Regular price
£9.11
ex VAT£10.93inc. VAT
Regular price
Sale price
£9.11
ex VAT£10.93
inc. VAT
Equivalent to: 6205VA201 6205VA208 6205VA228
In stock
Price Break
3+
£8.11
5+
£7.65
10+
£7.56
15+
£7.47
20+
£7.38
30+
£7.29
40+
£6.83
50+
£6.74
60+
£6.65
75+
£6.56
100+
£6.38
Share this product
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6205VA201 6205VA208 6205VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 25mm |
|---|---|
| Outside diameter D | 52mm |
| Width W | 15mm |
| Static load max | 4.62 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 160 rpm |
| Weight | 130 g |
